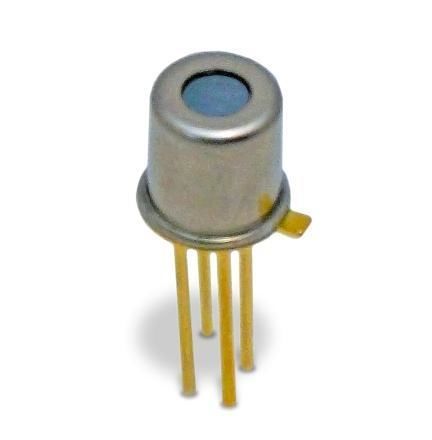

Thermopile infrared sensor TPiD 1T 0122 L3.0

DescriptionExcelitas TPiD 1T 0122 L3.0 is a miniature thermopile detector housed in a compact TO-46 package with an integrated focusing lens. The device incorporates a thermopile sensing element and an internal thermistor for temperature reference and compensation. As the lensed version of the miniature thermopile family, it features a specially designed sensing chip and a built-in lens that delivers a narrow field-of-view suitable for long-range non-contact temperature measurement and monitoring applications.

Features

• Compact TO-46 housing with optical window
• Integrated focusing lens (lensed version) for a narrow field-of-view
• Thermopile sensing element with internal thermistor for temperature compensation
• Specially designed sensing chip
• Suited for long-range non-contact temperature measurement and monitoring applications

Technical specifications

• Responsivity: 77 V/W
• Sensitivity S100: µV/K
• Noise: 42 nV/√Hz
• Time Constant: 15 ms
• Housing with optical window: TO-46
• Field-of-view: 12°
