Thermopile infrared sensor TPD 1T 0122

for portable infrared thermometer

Overview

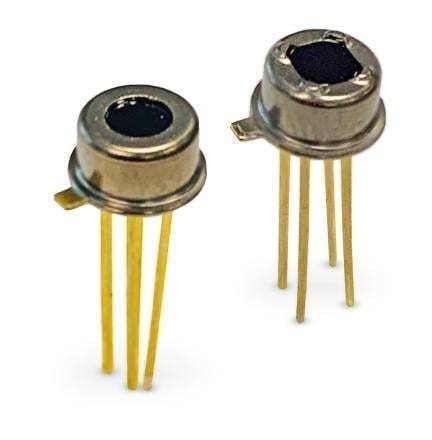

Excelitas TPD 1T 0122 and TPD 1T 0123 thermopile detectors in TO-46 housing provide a compact infrared sensing solution with a sensitive thermopile chip and a small optical window. The round window is coated for broadband IR (5–14 µm); the square window format allows implementation of narrow-band optical filters for gas monitoring and selective sensing. A built-in thermistor enables ambient temperature compensation.

Part Numbers
TPD 1T 0122, TPD 1T 0123

Key Features

• TO-46 metal housing with optical window (round or square)
• Thermistor included for ambient temperature compensation
• Optical coating for IR band 5–14 µm (round window); square window supports narrow-band filters
• High signal-to-noise ratio and short time constant for fast response

Specifications

• Responsivity: 77 V/W
• Sensitivity S100: 56 µV/K
• Noise: 42 nV/√Hz
• Time constant: 15 ms
• Housing with optical window: TO-46
• Field of view: 120°

Applications
Suitable for OEM infrared modules, handheld temperature sensing, industrial IR sensing and gas detection systems (when fitted with narrow-band filters in square-window variant). Use where a compact, compensated thermopile sensor is required.

Mounting & Ordering
Standard TO-46 through-hole package. Consult the datasheet for filter options, window format selection (round vs square) and soldering recommendations. Contact supplier for custom filter integration or bulk ordering.
