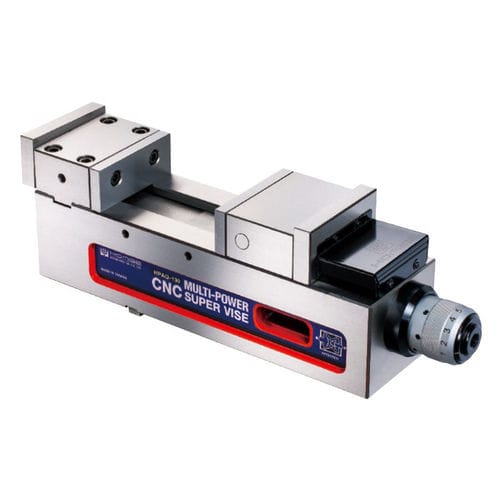

Milling machine vise HPAQ-100

for machine toolsmultiplehorizontal

Overview
Compact CNC vise series designed to deliver high, stable clamping force in limited workspaces, suitable for precision mould making and heavy-duty machining.

Key advantages

• Patents: M523545, M278511
• Shortest overall length with large jaw opening
• MULTI-POWER mechanical amplification: 0–5500 kg clamping range (model-dependent)
• High accuracy and repeatability (angle-lock positioning)
• Mountable horizontally or vertically; fixed height for stacking

Features

• 1. Fixed jaw: hardened steel, HRC 55. Vise body: ductile iron FCD60 for precision and wear resistance. At 2500 kg clamping the shape deflection < 0.005 mm.
• 2. Slideways hardened to HRC 50 to increase durability and maintain positioning height over long use.
• 3. Special ANGLE-LOCK system with compact, high-rigidity design automatically pulls the workpiece into accurate position within ±0.005 mm under 2500 kg.
• 4. Can be mounted horizontally or vertically to fit different machining centers.
• 5. Patented MULTI-POWER system made from high-grade bearing steel doubles and stabilizes clamping force.
• 6. Adjustable stop ring for presetting and repeating exact clamping force across operations.

Application
Designed for precision mould and toolmaking on machining centers and for heavy-duty machining operations that require high clamping force with tight positional accuracy. Fixed-height design allows multiple vises to be used together.

Accessories

• Standard: 2× alignment wedges, 4× clamps, 1× handle
• Optional: cross-grooved jaws, step jaws, combined jaws, V-jaws for round workpieces

SPECIFICATIONS (Unit: mm | Material: Ductile Iron FCD60 | Slideways Hardness: HRC 50)
Model | A | B | C | C1 | D | E | F | G | H | I | J | J1 | K | K1 | L | M | Max. Clamping Force | Weight (kg)
HPAQ-100 | 145 | 105±0.01 | 0-170 | 185-350 | 65±0.02 | 18 | 420 | 507 | 104 | 14 | 15 | 20 | 40 | 50 | 87 | 145 | 4000 kg | 40
HPAQ-130 | 163 | 115±0.01 | 0-205 | 195-395 | 57±0.02 | 18 | 470 | 557 | 134 | 14 | 15 | 20 | 48 | 58 | 87 | 145 | 5500 kg | 50

Technical specifications

• Brand: HOMGE
• Series / Models: HPAQ (HPAQ-100, HPAQ-130)
• Patents: M523545, M278511
• Materials: body — ductile iron (FCD60); fixed jaw — hardened steel (HRC 55)
• Slideways hardness: HRC 50
• Angle-lock accuracy: ≤ ±0.005 mm at 2500 kg clamping
• Clamping force range: model-dependent up to 0–5500 kg
• Mounting: horizontal or vertical
• Standard accessories: 2× alignment wedge, 4× clamp, 1× handle
• Unit: mm
• Typical applications: precision mould making, heavy-duty machining requiring high clamping force and accuracy
