Milling machine vise UV series

for grinding machinesfor machine toolsuniversal

Overview

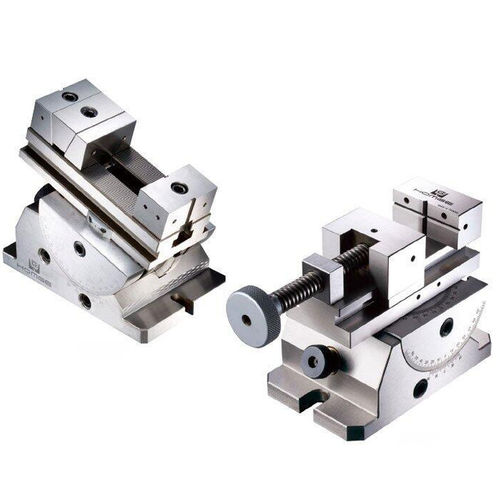

• Precision universal vise available in UV-80 and UV-120 models with tilting and swivel mechanism for angular positioning and machining.

Key features

• Precision graduation for accurate angular setting
• 360° horizontal swivel
• 45° vertical tilt
• Designed for straight or inclined surfaces, angular drilling and machining

Materials & Unit
Material: Vise: Steel | Base: FCD 50 Ductile Iron
Unit: mm

Specifications (table)
Model | A | B | C | D | E | F | G | H | I | J | K | L | Weight (kg)
UV-80 | 137 | 75 | 32 | 78 | 160 | 180 | 110 | 70 | 16 | 32 | 15 | - | 12
UV-120 | 231 | 128 | 53 | 150 | 310 | 300 | 180 | 120 | 18 | 60 | 25 | 98 | 54

Standard accessory

• 1 pc wrench

Applications

• Suitable for use on precision grinding machines, boring and milling machines, EDM and other machine tools for angular and inclined machining

Technical notes

• Material: vise jaws — steel; base — FCD 50 ductile iron
• Graduation and indexing provide repeatable angular positioning
• 360° swivel and 45° tilt allow machining at various angles without re-clamping
• Delivered in two sizes (UV-80, UV-120) to match different workpiece dimensions and capacities
• Dimensions and weights listed in the specifications table (units: mm / kg)
• Standard accessory: one wrench for jaw/clamp adjustment
