Milling machine vise HTB series

for machine toolstwin clampingmodular

Overview

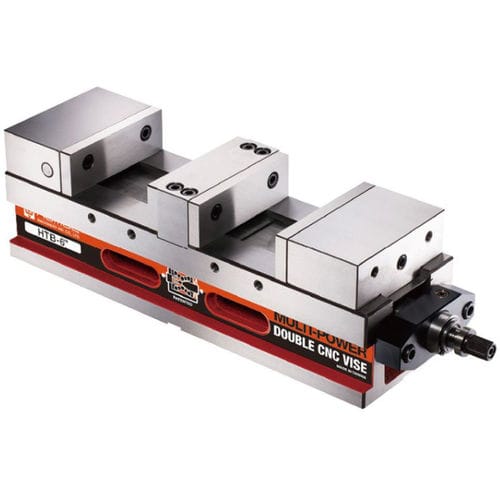

HTB double CNC multi-power vise engineered for dual-station CNC machining with a patented Multi-Power two-stage clamping mechanism. Constructed in ductile iron (FCD60) with hardened slideways (HRC 50) and a fixed-height modular body for multi-vise setups.

Features

• Special spring device provides up to 5 mm compensation for quick automatic positioning and clamping.
• Dual-station clamping holds two workpieces with up to 25 mm size difference for increased throughput.
• Angle-lock system in high-grade ductile iron (FCD60) pulls the workpiece downward to ensure accurate seating.
• Fixed-height design allows several vises to be mounted together on the machine table.
• Double leadscrew covers protect the leadscrew and guideways from swarf.
• Patented Multi-Power mechanism in high-grade bearing steel provides two-stage clamping: approximately 2500 kg at the first half turn and 4500 kg at the second half turn, delivering consistent clamping pressure and avoiding hydraulic maintenance issues.

Standard accessories

• 2 alignment wedges
• 4 clamps
• 1 handle
• 1 T-type wrench

Dimensional drawing
Dimensional drawing available showing clamping travel and mounting hole patterns.

Specifications
Material: Ductile Iron FCD60 | Slideways Hardness: HRC 50 | Unit: mm
Model | A | B | C | D | E | F | G | H | I | J | K | Weight (kg)
HTB-5\" | 168 | 115±0.01 | 94 | 236 | 18 | 472 | 584 | 134 | 19 | 15 | 53 | 53
HTB-6\" | 168 | 115±0.01 | 120 | 260 | 18 | 520 | 632 | 161 | 19 | 15 | 53 | 62
HTB-8\" | 187 | 120±0.01 | 150 | 310 | 18 | 620 | 732 | 200 | 19 | 18 | 66 | 112

Technical data

• Series: HTB (models HTB-5\", HTB-6\", HTB-8\").
• Material: Ductile Iron FCD60; slideways hardness HRC 50.
• Clamping system: Patented Multi-Power two-stage clamping (≈2500 kg at first half turn; ≈4500 kg at second half turn) providing constant pressure.
• Spring device: up to 5 mm tolerance for quick automatic positioning.
• Dual-station capability: holds two workpieces with maximum 25 mm size difference.
• Angle-lock system: high-rigidity angle-lock that pulls the workpiece downward for accurate positioning.
• Fixed-height design: allows stacking or using several vises together for multi-station arrangements.
• Protection: double leadscrew covers to protect against swarf.
• Accessories included: alignment wedges (2), clamps (4), handle (1), T-type wrench (1).
