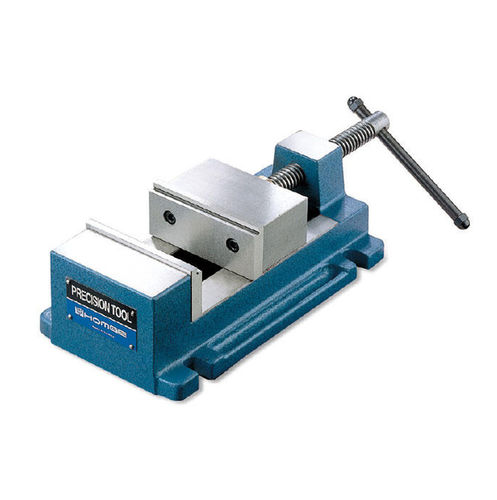

Machine tool vise HDV seriesangleparallelprecision
Add to favorites
Compare this product
Characteristics
- Applications
- for machine tools
- Configuration
- angle, parallel
- Other characteristics
- precision, hardened steel, cast iron, with clamping system, ductile iron, grounding
- Max. clamping range
Max.: 105 mm
(4 in)Min.: 95 mm
(4 in)- Weight
Max.: 8.2 kg
(18.078 lb)Min.: 6.6 kg
(14.551 lb)- Width
Max.: 175 mm
(6.9 in)Min.: 140 mm
(5.5 in)- Length
Max.: 316 mm
(12 in)Min.: 277 mm
(11 in)
Description
Description
Models / Dimensions (unit: mm)
Model | L | W | H | Jaw height | Jaw width | Opening | Weight (kg)
HDV-100 | 277 | 140 | 83 | 43 | 100 | 95 | 6.6
HDV-130 | 316 | 175 | 83 | 43 | 130 | 105 | 8.2
Features / Technical specifications
- ANGLE-LOCK mechanism applies vertical pressure to the jaws during clamping, ensuring parallel alignment of both jaws and stable workholding.
- Body manufactured from FCD55 nodular cast iron.
- Guides and jaw base are precision ground for accurate positioning.
- Stepped jaw design increases clamping versatility; jaws hardened to HRC50.
Models / Dimensions (unit: mm)
Model | L | W | H | Jaw height | Jaw width | Opening | Weight (kg)
HDV-100 | 277 | 140 | 83 | 43 | 100 | 95 | 6.6
HDV-130 | 316 | 175 | 83 | 43 | 130 | 105 | 8.2
Features / Technical specifications
- Series: HDV (HDV-100, HDV-130).
- Material: FCD55 nodular cast iron; base and guides precision ground.
- Jaw hardness: HRC50; stepped jaws for varied clamping applications.
- Clamping mechanism: ANGLE-LOCK for vertical pressure and parallel jaw alignment.
- Dimensions and weights listed per model (units: mm, weight: kg).
