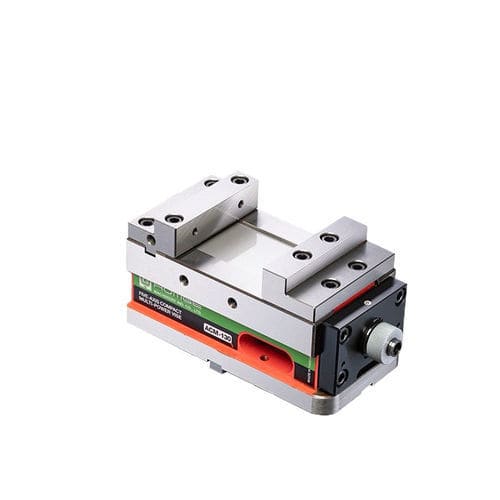

Machine tool vise ACM series

for milling machines5-axis machine toolscrew

Product overview
Compact five-axis multi-power vise featuring a patented mechanical booster (MULTI-POWER) delivering adjustable clamping force up to 0–5000 kg. Ultra-compact body and large jaw opening designed for 5-axis and horizontal/vertical CNC machining centers to maximize table space and tooling clearance.

Advantages

• Shortest overall length combined with a large jaw opening to improve machine workspace utilization
• PATENTED MULTI-POWER mechanical system increases clamping force up to 5000 kg without hydraulic components
• Suitable for 5-axis CNC machining centers and horizontal/vertical CNC machines

Features

• MULTI-POWER booster made from bearing steel provides consistent mechanical amplification of clamping force and avoids oil-leak issues common to hydraulic vises
• Compact body with wide jaw stroke to enable flexible fixturing and higher part throughput
• Special leadscrew covers protect the leadscrew from swarf, reducing internal wear
• Jaws manufactured from alloy tool steel SCM440 and hardened to approx. HRC 55 for secure part holding
• Body made of ductile iron (FCD60); slideways hardened to approx. HRC 52 for tensile strength and precision accuracy

Compatibility
Compatible with 52/96 mm zero-point quick-change systems. Recommended use with M-96x96 (8066, 8067, 8057) plates.

Specifications (unit: mm)
Model | A | B | C | C1 | D | E | E1 | F | G | H | I | J | J1 | K | K1 | L | M | O | P | Pull Studs | Max. Clamping Force | Weight (kg)
ACM-130 | 134 | 100±0.01 | 105 | 173 | 52 | M8 | 18 | 250 | 263 | 130 | 10 | 28 | 62 | 34 | 17 | 128 | 115 | 70 | 18 | M-96x96PS | 5000 kg | 22
ACM-160 | 150 | 100±0.01 | 167 | 247 | 93 | M10 | 18 | 350 | 363 | 160 | 10 | 40 | 80 | 50 | 25 | 158 | 175 | 90 | 25 | M-96x96PS | 5000 kg | 40

Standard accessories

• 2 x alignment wedges
• 4 x clamps
• 1 x wrench

Optional accessories

• Serrated jaws
• Soft jaws

Applications / notes

• Designed for high-precision fixturing on 5-axis and other CNC machining centers where machine space is limited or where oil-free mechanical amplification is preferred
• Mechanical MULTI-POWER system reduces maintenance compared with hydraulic vises and provides stable, repeatable clamping pressure

Technical specifications

• Brand: HOMGE
• Series: ACM series (ACM-130, ACM-160)
• Maximum clamping force: up to 5000 kg via MULTI-POWER mechanical booster
• Body material: Ductile iron (FCD60)
• Slideways hardness: approx. HRC 52
• Jaw material: Alloy tool steel SCM440, hardened to approx. HRC 55
• Leadscrew protection: Special covers to prevent swarf ingress
• Pull studs: M-96x96PS (compatible with 52/96 mm zero-point systems)
• Units in specification tables: mm
• Weights: ACM-130 = 22 kg; ACM-160 = 40 kg
