Machine tool vise HRV series

for grinding machinesfor milling machinesvertical

Brief

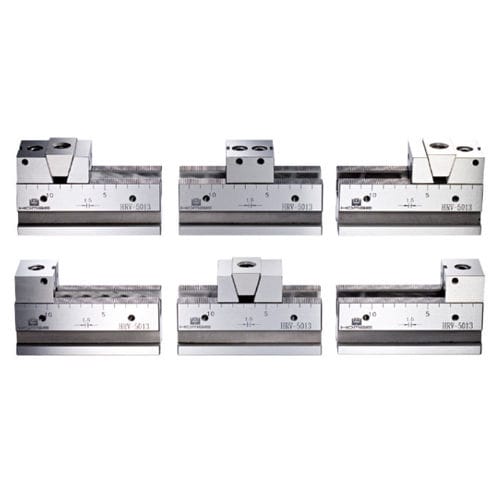

Adjustable modular in-row vise series HRV (examples: HRV-5015, HRV-7515, HRV-10018) for clamping square, round or irregular workpieces with fast repositioning.

Overview
The HRV adjustable in-row vise is a modular multi-station clamping system designed to increase CNC table utilisation and reduce setup time. Available in sizes HRV-5015, HRV-7515 and HRV-10018 with variants A–E, the units can be combined to create dense multi-workpiece fixtures for small-batch and high-mix production on horizontal, vertical and 4-axis machining centres as well as surface grinders.

Key features

• Material and treatment: tool steel, heat treated and precision ground (hardness HRC 56–60).
• Adjustable gear-type locating/datum plate for quick positioning of square, round, cylindrical or irregular parts.
• Modular, connectable units allow flexible multi-station layouts and rapid changeover between setups.
• Designed for horizontal, vertical and 4-axis CNC machining centres and surface grinders.
• Available variants A–E for each size to match clamping strategies and part geometries.

Standard accessories

• 2 alignment keys
• 4 clamps
• 1 wrench

Applications / Examples

• Simultaneous clamping of multiple small rectangular parts to maximise table utilisation and throughput.
• Use of optional V-jaws to clamp cylindrical or tapered components.
• Combined fixturing of large and small parts in a single setup.
• Custom jaws for irregular shapes to enable secure positioning of complex geometries.
• Suitable for 4-axis machining to increase multi-face processing efficiency.

Specifications (summary)
Unit: mm
Model | A | B | C | D | E | F | G | P | Weight (kg)
HRV-5015 | 150 | 100 | 18 | 50±0.01 | 10 | 50 | M6 | 1.5 | 2
HRV-7515 | 150 | 100 | 18 | 75±0.01 | 17 | 75 | M6 | 2 | 4
HRV-10018 | 180 | 100 | 18 | 75±0.01 | 17 | 100 | M6 | 2.5 | 7

Options and accessories

• V Jaws, fixed soft jaws, moveable soft jaws
• Supporting blocks (SB series), datum blocks (DP-A / DP-B)
• Custom jaws made to drawing for specific irregular profiles

Design & patents
Modular design optimised for high-density fixtures; patents referenced: 216009 and M266131.

Other information
Product page includes full specification tables, accessory lists and downloadable catalogue/PDF (file name example: "HRV-5015.7515.10018_spec.pdf").
