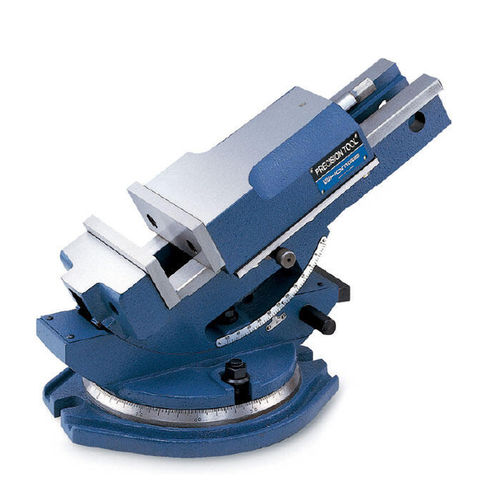

Milling machine vise HHY- seriesangleswivelgrounding
Add to favorites
Compare this product
Characteristics
- Applications
- for milling machines
- Configuration
- angle, swivel
- Other characteristics
- grounding, cast iron
- Max. clamping range
Max.: 310 mm
(12 in)Min.: 170 mm
(7 in)- Weight
Max.: 64 kg
(141.096 lb)Min.: 37 kg
(81.571 lb)
Description
Description
Tilting and swivel milling vise designed for angle milling operations, offering large jaw opening options for clamping oversized workpieces.
Features
Specifications (Unit: mm)
Model | A | B | C | D | E | F | G | H | I | Weight (kg)
HHY-100 | 195 | 42 | 170 | 270 | 405 | 228 | 168 | 19 | 15 | 37
HHY-150 | 214 | 40 | 310 | 336 | 485 | 300 | 238 | 19 | 15 | 64
Product Details
Technical specifications
Tilting and swivel milling vise designed for angle milling operations, offering large jaw opening options for clamping oversized workpieces.
Features
- Tilts up and down for angle milling; base rotates 360° for flexible positioning.
- High-quality casting with ground finish.
- Easy and light operation; 4 mounting holes allow quick, secure clamping.
- HHY-150 jaw opening: 310 mm (approximately 2× larger than standard milling vises).
- Functionally similar to HW-type hydraulic machine vise, excluding the hydraulic system.
Specifications (Unit: mm)
Model | A | B | C | D | E | F | G | H | I | Weight (kg)
HHY-100 | 195 | 42 | 170 | 270 | 405 | 228 | 168 | 19 | 15 | 37
HHY-150 | 214 | 40 | 310 | 336 | 485 | 300 | 238 | 19 | 15 | 64
Product Details
- Model designations available: HHY-100, HHY-150
- Size selector corresponds to HHY-100 and HHY-150
- Units for dimensions: mm
Technical specifications
- Series: HHY-
- Models: HHY-100, HHY-150
- Tilting function: tilts up and down for angle milling operations
- Rotation: 360° base rotation
- Construction: high-quality casting with ground finish
- Clamping: quick firm clamping via 4 mounting holes
- HHY-150 jaw opening: 310 mm
- Dimensions and weights as listed above (unit: mm / kg)
