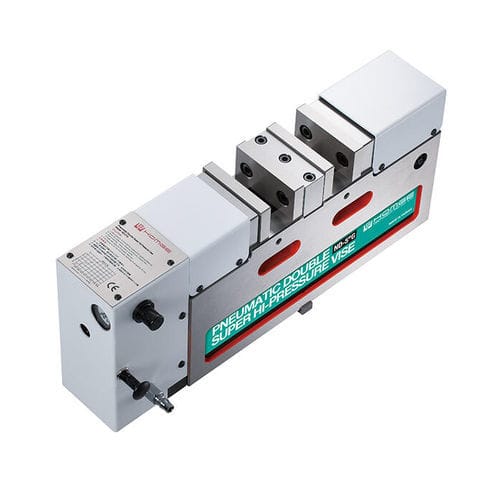

Machine tool vise ND-G series

pneumaticprecisionhigh-pressure

Product Details - High-Force Cylinders hardly malfunction with 3 Year Warranty - Fixed Height so several vices can be used together 1. The vise can hold 2 workpieces of different sizes. Allows an extra tolerance of up to 2 mm in workpieces. 2. Special High-Force Cylinders are designed to enhance clamping force of 0-4000kg and can be adjusted depending on the material of the work-piece. 3. Vise body is made of Ductile Iron above FCD 60 grade for high precision and durability. Slide ways are HARDENED to HRC 50° to further increase durability and maintain positioning height over long use. 4. Pressure Adjusting Knob: for quick operations. 5. High-Force Cylinders hardly malfunction. 6. Special safety device to ensure the vise holds clamping force for 20 minutes if the air supply is cut. 7. Stroke for moveable jaw: 4 mm. Pneumatic power source 6kg/cm² Specifications (Material: FCD 60 Ductile Iron. Hardness: HRC 50º) Model | A | B | C | D | E | F | G | H | I ND-4"G | 215 | 170±0.01 | 0-50 | 220±0.02 | 18 | 410 | 520 | 102 | 10 ND-5"G | 202 | 150±0.01 | 0-115 | 280±0.02 | 18 | 530 | 630 | 130 | 10 Model | J | K | Clamping Force | Clamping Stroke | Weight (kg) ND-4"G | 15 | 48 | 0-3300 kg | 4 mm | 45 ND-5"G | 15 | 55 | 0-4000 kg | 4 mm | 65 Standard Accessories: - 2 pcs of Alignment Wedge - 4 pcs of Clamp - 1 pc of Handle Optional Accessories: 1) Cross Grooved Jaws 2) V' Jaws 3) Combined Jaws 4) Step Jaws Technical Specifications: - Model: ND-4"G, ND-5"G - Material: FCD 60 Ductile Iron - Hardness: HRC 50º - Clamping Force: 0-3300 kg (ND-4"G), 0-4000 kg (ND-5"G) - Clamping Stroke: 4 mm - Weight: 45 kg (ND-4"G), 65 kg (ND-5"G) - Pneumatic power source: 6kg/cm² - Warranty: 3 years
