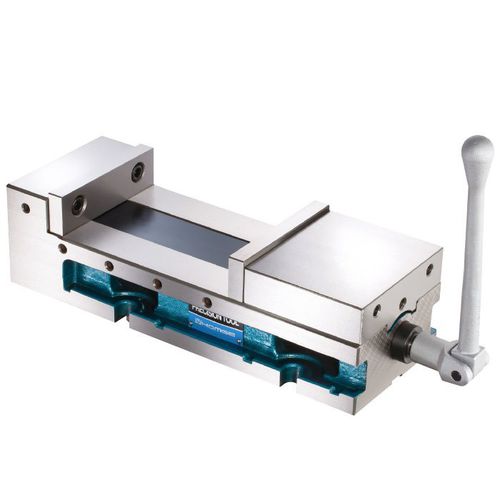

Machine tool vise GH series

for milling machinesmultipleangle

Overview

• Larger jaw opening for versatile workpiece clamping
• ANGLE-LOCK mechanism applies downward force to prevent workpiece lift
• High-rigidity one-piece ductile iron body (FCD55) for durability and long-term accuracy
• Precision-ground surfaces ensure consistent accuracy and repeatability
• Suitable for CNC machining centers and general machining applications

Technical drawing
Included technical drawing and dimension illustrations provided by the manufacturer.

Clamping Range

• GH-6” Super-Open 8”: 205 mm (8 1/5″) ; 273 mm (11 3/25″) ; 343 mm (13 18/25″) ; 416 mm (16 16/25″)
• GH-8” Super-Open 12”: 300 mm (12″) ; 393 mm (15 18/25″) ; 462 mm (18 12/25″) ; 555 mm (22 1/5″)

Material / Hardness

• Body material: Ductile Iron FCD55
• Slideways hardness: HRC 45

Specifications Table
Model | A | B | C | D | E | F | G | H | I | J | K | L | M | Weight (kg)
GH-6” Super-Open 8” | 115 | 77±0.01 | 205 | 95 | 18 | 425 | 475 | 156 | 19 | 18 | 44 | 50 | 150 | 30
GH-8” Super-Open 12” | 148 | 88±0.01 | 300 | 100 | 18 | 560 | 610 | 202 | 19 | 18 | 63 | 50 | 175 | 60

Standard Accessories

• 2 pieces of Alignment Wedge (standard)

Features / Technical specifications

• Series: GH series
• Models available: GH-6” Super-Open 8”, GH-8” Super-Open 12”
• Body material: Ductile Iron (FCD55)
• Slideways hardness: HRC 45
• Dimensions unit: mm (primary); some clamping ranges also shown in inches
• Standard accessories: 2 pcs Alignment Wedge
• Precision-ground sides and ANGLE-LOCK system to pull workpiece down securely
• Multiple clamping ranges per model to accommodate various setups
