Grinding machine vise VISE IN-ROW

for machine toolsfor milling machinesmultiple

Product overview

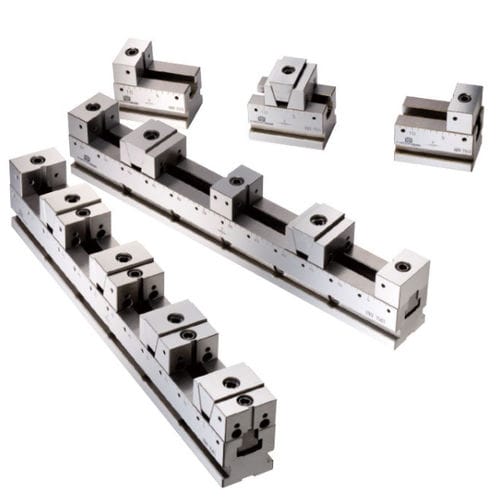

Multiple-clamp in-row vise from the HRV series designed for flexible simultaneous clamping of multiple workpieces of various sizes and shapes. Body and major components are manufactured from tool steel and precision ground after heat treatment to ensure accurate positioning and long service life. Adjustable tooth locating permits quick, repeatable fixture of square, round, cylindrical and irregular parts.

Material & hardness

• Material: Tool steel, precision ground
• Heat treatment: hardened to HRC 56–60 (some areas referenced >HRC 60)

Applications

Suitable for horizontal, vertical and 4-axis CNC machining centers and surface grinders. Intended for high-efficiency machining and mass-production workflows where multiple parts are clamped simultaneously to increase table utilization.

Standard accessories

• 2 pcs alignment wedge
• 4 pcs clamp
• 1 pc handle/key

Clamping examples / benefits

• Simultaneous clamping of many small rectangular parts to maximize machine throughput.
• Cylindrical parts clamped with optional V jaws.
• One or several larger parts can be clamped alongside smaller parts in the same setup.
• Irregular-shaped parts can be secured with optional custom soft jaws.
• Supports multi-directional fixturing on 4-axis machining centers.

Optional accessories

• V jaw (for fixed jaw)
• Fixed soft jaw (for movable jaw)
• Movable soft jaw
• Wedge set
• Single-bevel fixed/movable jaw sets
• Supporting blocks and datum plates (for HRV-50, HRV-75, HRV-100)

Notes on construction & use

Body components are precision ground. Adjustable precision tooth locating enables fast and accurate fixturing. Choose FD (forcing-direction) or MD (multiple-direction) families according to clamping strategy. Use optional jaws and support blocks to adapt to cylindrical, thin-walled or complex profiles.

Technical specifications / models

• Series: HRV series (FD and MD variants)
• Representative models: HRV-5030, HRV-5040, HRV-5050, HRV-5060, HRV-5070, HRV-7543, HRV-7553, HRV-7563, HRV-7573, HRV-10055, HRV-10065, HRV-10075 (examples include HRV-5030-FD, HRV-5030-MD, etc.)
• Units for dimensional tables: mm
• Clamping force and weight vary by model (examples: HRV-5030-FD: 1000 N, 7 kg; HRV-10055-FD: 2700 N, 40 kg; HRV-5030-MD: 1000 N, 5.3 kg)
