Characteristics
- Applications
- for milling machines, for machine tools, 5-axis machine tool
- Configuration
- interchangeable jaws
- Other characteristics
- self-centering, twin clamping, with clamping system, steel
- Max. clamping range
Min.: 0 mm
(0 in)Max.: 338 mm
(13 in)- Weight
Min.: 2.8 kg
(6.173 lb)Max.: 17 kg
(37.479 lb)- Width
Min.: 77 mm
(3 in)Max.: 127 mm
(5 in)- Length
Min.: 102 mm
(4 in)Max.: 360 mm
(14 in)
Description
Overview
Key features
Accessories
Jaws (available types)
Technical specifications
Dimensions (selected models, unit: mm)
More information

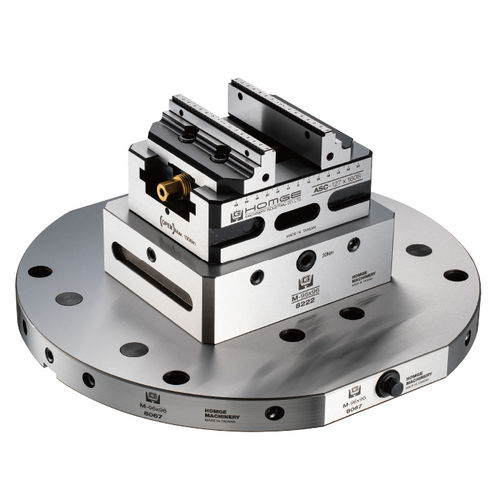

- Five-axis adjustable self-centering vise designed for high-rigidity clamping, automation compatibility and precision CNC workholding. Clamping force up to 1300 KG and repeatability of clamping center within ±0.02 mm.
- Recommended operation with a Master Plate (zero-point quick change system) on five-axis machines to enable fast setup and precise positioning. Compatible with robotic arms and suitable for 4/5-axis machining, CNC indexing tables and vertical/horizontal CNC milling machines.
Key features
- Patented stud-bolt seat design for efficient calibration of the clamping center; clamping center adjustable by end screws.
- Vise body made of S50C steel; slideways high-frequency hardened to HRC50 for long-term stability.
- Detachable, reversible jaws in SCM440 tool steel, carburized to HRC48–50 to extend clamping range and maintain datum on both sides.
- 45° dovetail structure with teeth on the upper jaw to prevent workpiece lift and ensure secure support during heavy cutting.
- Wide clamping ranges across series: Width-77 series up to 197 mm; Width-127 series up to 338 mm.
Accessories
- Standard accessories: 4 clamps, 1 service wrench.
- Optional accessories: zero-point quick change components (master plates, risers, twin bases), pull studs (M-52x52PS or M-96x96PS), various jaw sets (flexi, standard hard, flat, narrow, soft) and quick-change soft jaw kits.
Jaws (available types)
- Flexi Jaws — flexible clamping for round and irregular workpieces.
- Standard Hard Jaws — high clamping force and repeatable datum for precision machining.
- Flat Jaws — stable clamping for soft or flat workpieces.
- Narrow Jaws — avoid tool interference and provide clearance in tight setups.
- Soft Jaws — custom-profiled to securely hold irregular shapes.
- Quick Change Soft Jaws Set — fast changeover for complex machining.
Technical specifications
- Materials: Body S50C steel; slideways hardened to HRC50. Jaws: SCM440 alloy steel, carburized (HRC48–50 for some variants).
- Clamping force: up to 1300 KG (model-dependent).
- Repeatability / positioning precision: clamping center within ±0.02 mm.
- Calibration: clamping center adjustable via end screws; patented stud-bolt seat for fine calibration.
- Applications: 4-axis / 5-axis machining, CNC indexing tables, vertical & horizontal CNC milling machines; compatible with robotic automation and zero-point systems.
Dimensions (selected models, unit: mm)
- ASC-77x102S | A 70 | B 43 | C 28 | C1 32 | C2 85 | C3 89 | E M6 | F 102 | G 107 | H 77 | Pull Studs M-52x52PS | Weight 2.8 kg
- ASC-77x130S | A 70 | B 43 | C 56 | C1 60 | C2 113 | C3 117 | E M6 | F 130 | G 135 | H 77 | Pull Studs M-52x52PS | Weight 3.5 kg
- ASC-77x170S | A 70 | B 43 | C 96 | C1 100 | C2 153 | C3 157 | E M6 | F 170 | G 175 | H 77 | Pull Studs M-52x52PS | Weight 4.2 kg
- ASC-77x210S | A 70 | B 43 | C 136 | C1 140 | C2 193 | C3 197 | E M6 | F 210 | G 215 | H 77 | Pull Studs M-52x52PS | Weight 4.9 kg
- ASC-127x160S | A 87 | B 55 | C 70 | C1 75 | C2 133 | C3 138 | E M6 | F 160 | G 165 | H 127 | Pull Studs M-96x96PS | Weight 9.0 kg
- ASC-127x210S | A 87 | B 55 | C 120 | C1 125 | C2 183 | C3 188 | E M6 | F 210 | G 215 | H 127 | Pull Studs M-96x96PS | Weight 11.0 kg
- ASC-127x260S | A 87 | B 55 | C 170 | C1 175 | C2 233 | C3 238 | E M6 | F 260 | G 265 | H 127 | Pull Studs M-96x96PS | Weight 13.0 kg
- ASC-127x310S | A 87 | B 55 | C 220 | C1 225 | C2 283 | C3 288 | E M6 | F 310 | G 315 | H 127 | Pull Studs M-96x96PS | Weight 15.0 kg
- ASC-127x360S | A 87 | B 55 | C 270 | C1 275 | C2 333 | C3 338 | E M6 | F 360 | G 365 | H 127 | Pull Studs M-96x96PS | Weight 17.0 kg
More information
- Product details: https://www.homge.com.tw/five-axis-adjustable-self-centering-vise-asc-s
