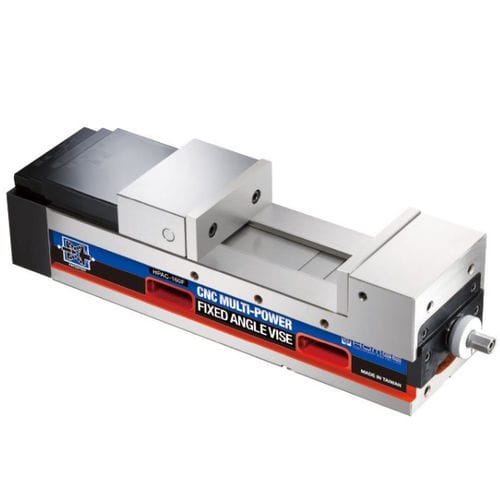

Machine tool vise HPAC-160F

for milling machinessinglevertical

Overview

• Mechanical front-mount fixed-height precision-angle vise for CNC machining centers and conventional mills.
• Patented MULTI-POWER clamping system for staged, stable high clamping force.
• ANGLE-LOCK mechanism provides controlled downward pull for accurate seating under load.

Advantages

• Mechanical construction suited for heavy-duty and repeatable CNC clamping.
• High accuracy and repeatability with fixed-height design for multi-vise setups.
• Ergonomic front-mount orientation reduces operator reach and handling time.
• MULTI-POWER design increases and stabilizes clamping force across operations.

Features

• One-piece body in ductile iron FCD60 for high rigidity and long-term dimensional stability; under 4500 kg load deflection ≤ ±0.01 mm.
• Slideways hardened to HRC 50 for enhanced wear resistance and consistent positioning.
• ANGLE-LOCK system ensures downward pull and accurate seating within ±0.01 mm at specified load, suitable for precision mold and tool clamping.
• Can be mounted horizontally or vertically to support varied machining setups.
• Patented MULTI-POWER system using high-grade bearing steel provides staged clamping: first half-turn ≈ 2500 kg, second half-turn ≈ 4500 kg; system minimizes leakage and stabilizes force.
• Adjusting stop ring for presetting desired clamping force and ensuring repeatable results.

Applications

• Fixed-height design allows multiple vises to be used in array for high-volume or multi-fixture machining.
• Suitable for horizontal and vertical CNC machining centers and conventional mills where heavy cutting forces require high, repeatable clamping force.

Standard & Optional Accessories

• Standard accessories: 2 Alignment Wedges, 4 Clamps, 1 Handle.
• Optional accessories: Front/Back Jaws (various profiles including V-jaws, serrated jaws, stepped jaws) to expand clamping capacity and accommodate diverse workpieces.

Specifications (summary, unit: mm)

• Material: Ductile Iron FCD60
• Slideways Hardness: HRC 50

Specification table (excerpt)
Model | A | B | C | C1 | C2 | C3 | D | E | F | G | H | I | J | K | L | M | Max. Clamping Force | Weight (kg)
HPAC-160F | 160 | 105±0.01 | 0-300 | 85-375 | 110-395 | 190-480 | 80±0.02 | 18 | 580 | 637 | 161 | 19 | 15 | 58 | 57 | 165±0.02 | 7000 kg | 65

Technical specifications

• Model: HPAC-160F (HPAC-F front-mount series)
• Body material: Ductile Iron (FCD60)
• Slideways hardness: HRC 50
• A (mm): 160
• B: 105±0.01 mm
• C: 0-300 mm
• C1: 85-375 mm
• C2: 110-395 mm
• C3: 190-480 mm
• D: 80±0.02 mm
• E: 18 mm
• F: 580 mm
• G: 637 mm
• H: 161 mm
• I: 19 mm
• J: 15 mm
• K: 58 mm
• L: 57 mm
• M: 165±0.02 mm
• Max. Clamping Force: 7000 kg (table value for HPAC-160F)
• Operational clamping behavior: first half-turn ≈ 2500 kg; second half-turn ≈ 4500 kg; MULTI-POWER design provides consistent clamping force.
• Weight: 65 kg
