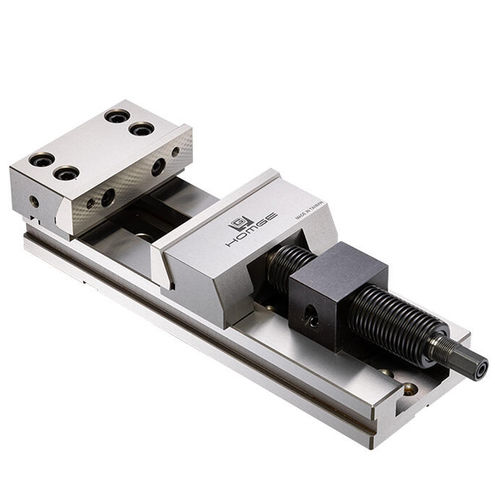

Machine tool vise HG-h series

for milling machineshydraulicmodular

Overview
Maximize productivity with the Precision Rapid Hydraulic Vise HG-h. The quick-slide design provides rapid positioning while the hydraulic clamping delivers consistent, rigid holding for CNC milling and machining operations.

Advantages

• Hydraulic lead screw design for simplified operation.
• Modular clamping vise incorporating all HG-type features.

Features

• All-steel construction ensures dimensional stability and machining accuracy.
• Instant clamping via hydraulic hex-nut for fast adjustment on workpieces with irregular lengths.
• Compact movable jaw design maximizes usable workholding area and opening capacity.

Technical drawing / Dimensions
Technical drawing and dimensions of PRECISION RAPID HYDRAULIC VISE (image available on product page).

SPECIFICATIONS (Material: Body S50C Steel, Slideways HRC 52-56)
Unit: mm
Model | A | B | C | D | E | E1 | e | H | Clamping Force | Weight (kg)
HG-150hA | 150 | 150 | 350 | 85±0.02 | 95 | 18 | 48±0.01 | 19 | 4000 kg | 23.5
HG-150hB | 150 | 200 | 400 | 85±0.02 | 95 | 18 | 48±0.01 | 19 | 4000 kg | 25.5
HG-150hC | 150 | 250 | 450 | 85±0.02 | 95 | 18 | 48±0.01 | 19 | 4000 kg | 27.5
HG-150hD | 150 | 300 | 500 | 85±0.02 | 95 | 18 | 48±0.01 | 19 | 4000 kg | 29.5
HG-175hB | 175 | 200 | 450 | 85±0.02 | 119 | 18 | 62±0.01 | 19 | 4000 kg | 42.5
HG-175hC | 175 | 250 | 500 | 85±0.02 | 119 | 18 | 62±0.01 | 19 | 4000 kg | 46.5
HG-175hD | 175 | 300 | 550 | 85±0.02 | 119 | 18 | 62±0.01 | 19 | 4000 kg | 51.5
HG-200hA | 205 | 200 | 470 | 85±0.02 | 126 | 18 | 63±0.01 | 19 | 4000 kg | 55.5
HG-200hB | 205 | 250 | 520 | 85±0.02 | 126 | 18 | 63±0.01 | 19 | 4000 kg | 63.5
HG-200hC | 205 | 300 | 570 | 85±0.02 | 126 | 18 | 63±0.01 | 19 | 4000 kg | 73.5

STANDARD ACCESSORIES

• 2 pcs of alignment wedge
• 4 pcs of clamp
• 1 pc of handle (wrench)

Technical characteristics / specifications summary

• Material: Body S50C Steel.
• Slideways hardness: HRC 52-56.
• Units of dimensions: mm.
• Available models / sizes: HG-150h(A,B,C,D), HG-175h(B,C,D), HG-200h(A,B,C).
• Instant hydraulic clamping with hydraulic hex-nut for rapid adjustments.
• Compact movable jaw design for maximum opening capacity.
• Clamping force: 4000 kg (typical across listed models).
• Standard accessories included: alignment wedges, clamps, handle (wrench).
