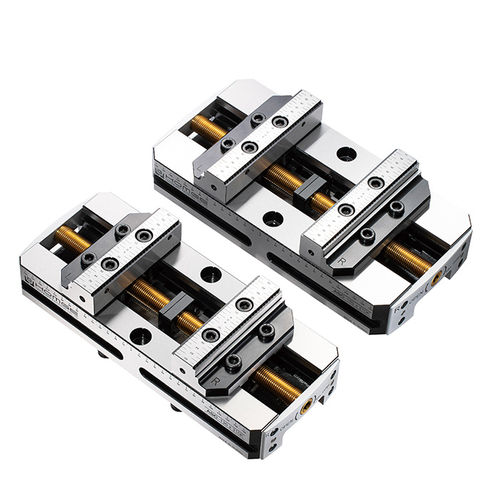

Machine tool vise ASC-K

5-axis machine tooluniversalfor milling machines

Overview
The ASC-K five-axis adjustable self-centering vise is designed for heavy cutting and the secure clamping of large workpieces on 4- and 5-axis CNC machines, CNC indexing tables and vertical/horizontal milling machines.

Key Features

• High rigidity provided by a reinforced stud-bolt seat and hardened jaws, suitable for machining large parts.
• Universal compatibility with machine-tool models; patented center-positioning threaded pin allows fast, precise adjustment of the clamping center.
• Consistent materials and manufacturing across the ASC series for repeatable performance.
• Available jaw widths: 130 mm and 160 mm; clamping range: 0–255 mm.

Detailed Features

• 1. Vise body in S50C steel; slideways induction-hardened to HRC50 for wear resistance and durability.
• 2. Detachable, reversible jaws in SCM440 tool steel, carburized to approx. HRC48–50; both faces are reference surfaces and can be reversed to extend clamping range.
• 3. Clamping force up to 1300 kg; repeatability/positioning precision of the clamping center within ±0.02 mm.
• 4. Patented center-positioning threaded pin with calibration ring enables quick center adjustment without disassembly.
• 5. Upper jaw with 45° dovetail profile and teeth to ensure firm support under the workpiece.
• 6. Typical applications: precision machining on 4- and 5-axis CNC machines, CNC indexing tables, vertical and horizontal CNC milling machines.

Standard Accessories

• 4 pcs clamp
• 1 pc wrench

Optional Accessories

• Zero Point Quick Change System components (compatible adapter plates, plates and risers)
• Pull studs for zero-point quick change systems (recommended: M-96x96PS)

Specifications Table (unit: mm)
Model | A | B | C | C1 | C2 | C3 | D | E | F | G | H | I | J | J1 | J3 | K | K1 | K2 | K3 | L | N | O | P | Q | R | Pull Studs | Weight (kg)
ASC-130x310K | 80 | 48 | 194 | 199 | 250 | 255 | 12 | M6 | 310 | 326 | 130 | 10 | 2.5 | 25 | 58 | 29 | 32 | 20 | 3 | 126 | 96 | 90 | 24 | 102 | M12 | M-96x96PS | 13.6
ASC-160x310K | 80 | 48 | 194 | 199 | 250 | 255 | 12 | M6 | 310 | 326 | 160 | 10 | 2.5 | 25 | 58 | 29 | 32 | 20 | 3 | 156 | 96 | 90 | 24 | 102 | M12 | M-96x96PS | 17.4

Material Notes

• Body: S50C steel; slideways hardened to HRC50.
• Jaws: SCM440 alloy/tool steel; carburized to approx. HRC48–50.

Integration / Applications
Can be integrated with Zero Point Quick Change System components (plates, risers, pull studs, twin bases, etc.) to reduce setup time and enable quick machine changeovers.
