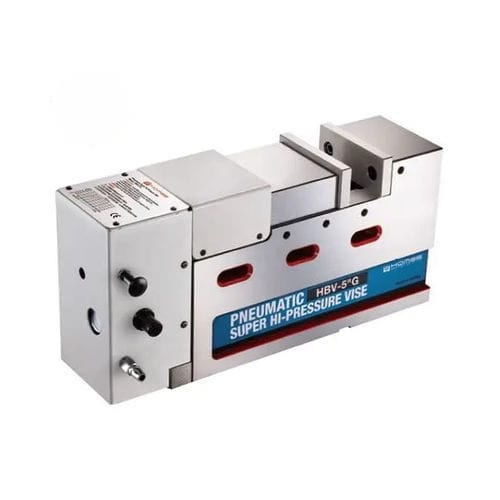

Milling machine vise HBV-G

for machine toolsmachinemultiple

Overview
The HBV-G series pneumatic vise delivers adjustable high clamping force via high-force pneumatic cylinders, a fixed-height design for inline / multiple-unit mounting and hardened slideways for sustained positioning accuracy. It is intended for machining and production environments requiring repeatable, safe clamping.

Key features

• High-force cylinders: adjustable clamping force 0–6000 kg (model-dependent); 3 years warranty on cylinders.
• Vice body in ductile iron (FCD 60+), selected for precision and wear resistance.
• Slide ways hardened to HRC 50° to preserve positioning height and improve durability.
• Special angle-lock system with compact design ensures high rigidity and automatically pulls the workpiece down to the accurate position.
• Safety device maintains clamping force for approx. 20 minutes if air supply is interrupted.
• Movable jaw stroke: 4–4.5 mm.

Pneumatic power
Pneumatic power source: 6 kg/cm2

Dimensions / Specifications (Unit: mm)
Model | A | B | C | D | E | F | G | H | I
HBV-4''G | 215 | 170±0.01 | 105 | 145±0.02 | 18 | 320 | 430 | 100 | 10
HBV-5''G | 222 | 170±0.01 | 155 | 145±0.02 | 18 | 380 | 490 | 130 | 10
HBV-6''G | 245 | 190±0.01 | 205 | 145±0.02 | 18 | 440 | 550 | 161 | 10

Model | J | K | L | Max. Clamping Force | Clamping Stroke | Weight (kg)
HBV-4''G | 15 | 48 | 45 | 0-3300 kg | 4 mm | 30
HBV-5''G | 15 | 55 | 52 | 0-4000 kg | 4 mm | 50
HBV-6''G | 15 | 58 | 55 | 0-5000 kg | 4 mm | 63

Standard accessories

• 2 alignment wedges
• 4 clamps
• 1 handle

Optional accessories

• Cross-grooved jaws
• V jaws
• Combined jaws
• Step jaws

Technical specifications

• Model series: HBV-G (HBV-4''G, HBV-5''G, HBV-6''G).
• Material: Ductile Iron (FCD 60+) for vice body.
• Guide hardness: slide ways hardened to HRC 50°.
• Clamping force (by model): HBV-4''G ~0–3300 kg; HBV-5''G ~0–4000 kg; HBV-6''G ~0–5000 kg (adjustable up to system capability).
• Clamping stroke: 4 mm; movable jaw stroke: 4–4.5 mm.
• Pneumatic pressure: 6 kg/cm2.
• Safety: device maintains clamping for ~20 minutes on air loss.
• Warranty: 3 years on high-force cylinders.
• Brand: HOMGE.
