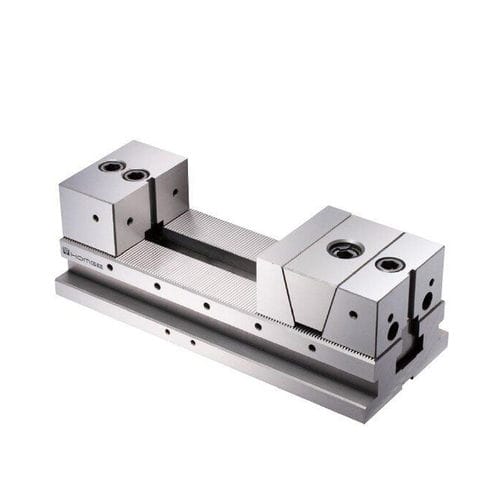

Machine tool vise S-100

for milling machinesmanualscrew

Description

• Compact size with large clamping capacity: jaw opening up to 150 mm
• Jaws manufactured from high-grade tool steel, heat-treated and precision-ground; jaw hardness indicated as HRC56; body hardness indicated as HRC52
• Fixed-height design suitable for machining centers; compatible with high-speed CNC machining and tapping machines
• Allows mounting of multiple vises in parallel

Specifications
Unit: mm
Model | A | B | C | D | E | F | G | H | I | J | K | L | M | P | Weight (kg)
S-100 | 125 | 310 | 150 | 103.5 | 50.5 | 53±0.01 | 135 | 80 | 16 | 17 | 60 | 14 | 25 | 2.5 | 20

Standard accessories

• 4 clamping plates
• 1 wrench

Features / Technical details

• Model: S-100
• Maximum jaw opening: 150 mm
• Jaw material: tool steel; jaw hardness: HRC56
• Body material / hardness (spec sheet): HRC52
• Fixed height, designed for machining centers
• Compatible with multiple vises mounted in parallel
• Units in table: mm
• Dimensions (table): A=125, B=310, C=150, D=103.5, E=50.5, F=53±0.01, G=135, H=80, I=16, J=17, K=60, L=14, M=25, P=2.5
• Weight: 20 kg
• Included accessories: 4 clamping plates, 1 wrench
