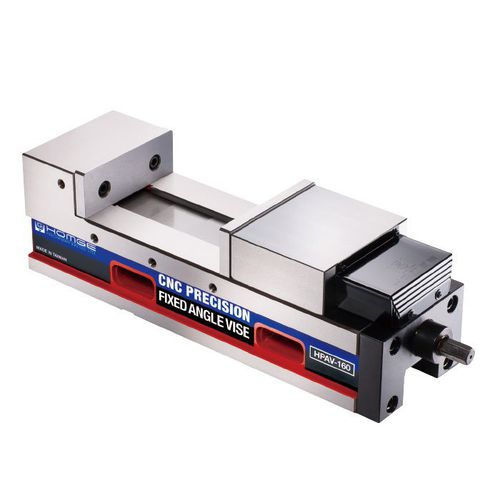

Machine tool vise HPAV-

for milling machinesmanualhorizontal

Overview
This vise shares design features with the HPAC model but uses a standard clamping screw instead of the MULTI-POWER SYSTEM. It is suited for multi-unit use on horizontal and vertical CNC machining centers as well as conventional milling machines.

Advantages

• Same functionality as model HPAC with simplified standard clamping screw for reliable multi-unit clamping.

Features

• 1. Vise body machined from ductile iron (FCD60 or above) as a single solid piece for high rigidity and dimensional stability.
• 2. Slideways hardened to HRC 50 to increase wear resistance and preserve positioning accuracy over long service life.
• 3. Angle-lock system designed to pull the workpiece down to the accurate reference position, improving clamping repeatability.
• 4. Can be mounted horizontally or vertically to suit different machining setups.

Fixed height
Fixed-height design enables multiple vises to be stacked or aligned together, facilitating multi-unit applications on machining centers.

Specifications
Unit: mm
Model | A | B | C | C1 | C2 | C3 | D | E | F | G | H | I | J | K | M | Weight (kg)
HPAV-130 | 147 | 95±0.01 | 0-190 | 70-260 | 115-305 | 185-375 | 80±0.02 | 18 | 440 | 503 | 131 | 19 | 15 | 55 | 150 | 42
HPAV-160 | 160 | 105±0.01 | 0-250 | 85-325 | 140-375 | 220-460 | 80±0.02 | 18 | 525 | 588 | 161 | 19 | 15 | 58 | 165 | 60
HPAV-160L | 160 | 105±0.01 | 0-300 | 85-375 | 110-395 | 190-480 | 80±0.02 | 18 | 545 | 608 | 161 | 19 | 15 | 58 | 165 | 62
HPAV-200 | 170 | 110±0.01 | 0-290 | 90-380 | 155-440 | 240-530 | 100±0.02 | 18 | 600 | 662 | 201 | 19 | 18 | 63 | 197 | 90

Standard accessories

• 2 pcs of alignment wedge
• 4 pcs of clamp
• 1 pc of handle

Optional accessories

• Front / back jaws (various types: cross-grooved, step, V-jaws, combined and outer front-back jaws)

Technical specifications

• Manufacturer: HOMGE
• Series / Model name: HPAV- (HPAV-130, HPAV-160, HPAV-160L, HPAV-200)
• Material: Ductile iron (FCD60)
• Slideways hardness: HRC 50
• Angle-lock system to pull workpiece down to accurate position
• Mounting orientation: horizontal or vertical
• Fixed height for multi-unit stacking
• Unit of table specifications: mm
• Included accessories: alignment wedges, clamps, handle
• Optional: various front/back jaws to extend clamping capability
