Machine tool vise ACM-S

for milling machinessinglevertical

Overview

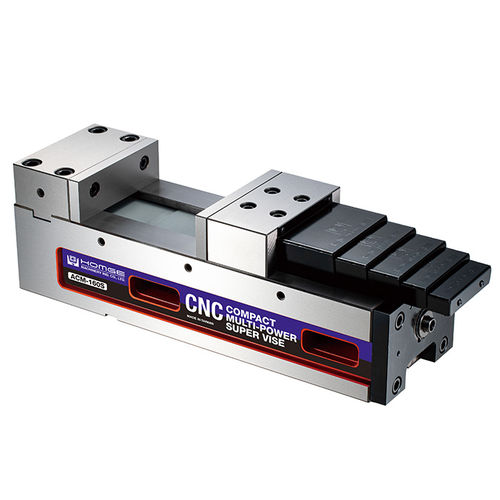

Compact short-body CNC vise with an extra-large jaw opening to maximize machine workspace efficiency. Patent-based Multi-Power system provides doubled clamping force within a compact footprint, suitable for CNC machining centers and automation systems.

Advantages

• Designed to solve restricted machining space while meeting high clamping-force requirements.
• Short body length combined with a large jaw opening improves usable machine travel.
• Patented Multi-Power structure delivers stable, high clamping force over time.
• High accuracy and repeatability for CNC and automated production.

Key Features

• Compact design with large jaw opening — fits horizontal and vertical CNC machining centers and small tapping centers.
• Jaws made of tool steel SCM440 (hardened to HRC50) for secure clamping of workpieces.
• Vise body of ductile iron FCD60; slideways high-frequency heat-treated to HRC50 for strength and precision.
• Patented Multi-Power system made from high-grade bearing steel produces doubled clamping force and consistent pressure.
• Special leadscrew covers protect the leadscrew from chips and swarf, preserving internal precision parts.

STANDARD ACCESSORIES

• 2 pcs Alignment Wedge
• 4 pcs Clamps
• 1 pc Wrench

OPTIONAL ACCESSORIES

• Outer Jaws
• Cross Grooved Jaws
• Combined Jaws
• V Jaws
• Step Jaws

SPECIFICATIONS (unit: mm / mechanical data)
Model | A | B | C | C1 | E | F | G | H | I | J | K | M | N | O | Max. Clamping Force | Weight (kg)
ACM-100S | 140 | 100±0.01 | 200 | 350 | 18 | 352 | 411 | 100 | 10 | 15 | 40 | 145 | 60 | 62 | 4000 kg | 31
ACM-130S | 148 | 100±0.01 | 250 | 410 | 18 | 430 | 479 | 134 | 10 | 15 | 48 | 145 | 86 | 62 | 4000 kg | 46
ACM-160S | 168 | 115±0.01 | 302 | 498 | 18 | 500 | 549 | 161 | 10 | 15 | 53 | 145 | 86 | 80 | 5000 kg | 63

Notes
Body material: ductile iron (FCD60); slideways hardness HRC50; jaws: tool steel SCM440 / S50C hardened to HRC50. Patented Multi-Power System provides adjustable clamping force up to 5000 kg depending on model.
