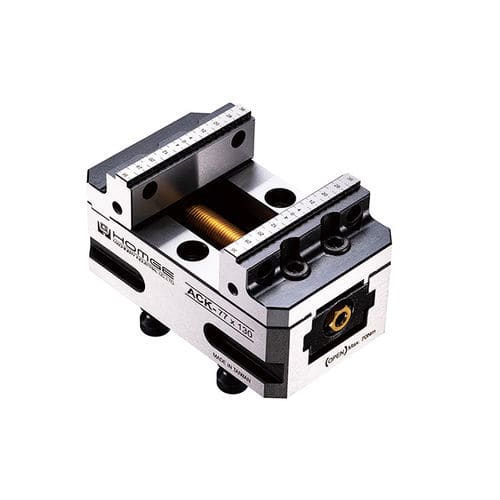

Milling machine vise ACK series

5-axis machine toolfor machine toolssingle

Overview
Designed for high-precision second-operation finishing on 4- and 5-axis machining centers. Compact footprint and single-direction clamping reduce setup time and support consistent multi-face machining workflows.

Features

• Single-direction clamping with repeatable positioning precision of ±0.01 mm.
• Bottom mounting holes accept both 52 mm and 96 mm pull-stud patterns for rapid zero-point integration.
• Hardened slideways (HRC 50) and SCM440 alloy jaws (HRC 48–50) for wear resistance and stable clamping.
• Compatible with precision 4- and 5-axis CNC machines, indexing tables, and vertical or horizontal machining centers.
• Recommended for multi-face, high-precision parts in aerospace, medical and automotive industries.

Standard Accessories

• 2 pcs mounting screws
• 4 pcs clamps
• 1 pc wrench

Optional Accessories

• Zero-point quick-change devices
• Pull studs (M-52x52PS, M-96x96PS)

Specifications (unit: mm)
Material: Body S50C steel; Slideways hardened to HRC 50; Jaws SCM440 alloy steel, HRC 48–50

Model | A | B | C | C1 | C2 | D | E | F | G | H | I | J | J1 | J2 | K | K1 | K3 | N | O | P | Q | R | Pull Studs | Weight (kg)
ACK-77x130 | 70 | 43±0.01 | 56 | 60 | 88 | 10 | M6 | 130 | 137 | 77 | 12 | 2 | 9.5 | 37 | 24 | 27 | 3 | 52 | 42 | 15 | 55 | M8 | M-52x52PS | 4.9
ACK-127x160 | 80 | 48±0.01 | 70 | 75 | 106 | 12 | M6 | 160 | 167 | 127 | 14 | 2.5 | 9.5 | 45 | 29 | 32 | 3 | 96 | 90 | 24 | 102 | M12 | M-96x96PS | 12.8
ACK-127x210 | 80 | 48±0.01 | 120 | 125 | 156 | 12 | M6 | 210 | 217 | 127 | 14 | 2.5 | 9.5 | 45 | 29 | 32 | 3 | 96 | 90 | 24 | 102 | M12 | M-96x96PS | 17

Technical characteristics / specifications

• Series: ACK series (single-direction clamping).
• Repeatability / positioning precision: ±0.01 mm.
• Materials: Body S50C steel; slideways hardened to HRC 50; jaws SCM440 alloy steel hardened HRC 48–50.
• Pull-stud compatibility: supports 52×52 and 96×96 patterns (M-52x52PS, M-96x96PS).
• Units used in specifications: mm.
• Available models and weights: ACK-77x130 (4.9 kg), ACK-127x160 (12.8 kg), ACK-127x210 (17 kg).
• Intended applications: multi-face, high-precision machining for aerospace, medical and automotive parts.
