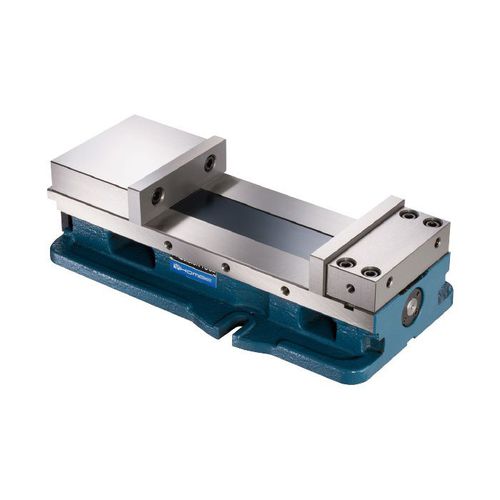

Machine tool vise TV seriesmachinefor milling machinesswivel
Add to favorites
Compare this product
Characteristics
- Applications
- for machine tools, machine, for milling machines
- Configuration
- swivel, angle
- Other characteristics
- precision, ductile iron
- Max. clamping range
Max.: 583 mm
(23 in)Min.: 250 mm
(10 in)- Weight
Max.: 62 kg
(136.687 lb)Min.: 36 kg
(79.366 lb)
Description
Product overview
Front-pulling angle-lock precision vise designed for accurate workpiece positioning and repeatable setups. Available in Super-Open variants for larger jaw capacity (10" for TV-6, 12" for TV-8).
Key features
Specifications Table
Unit: mm
Model | A | B | C | D | E | F | G | H | I | J | K | L | M | Weight (kg)
TV-6" Super-Open 10" | 113 | 77 | 250 | 100 | 16 | 455 | 484 | 240 | 19 | 19 | 160 | 44 | 162 | 36
TV-8" Super-Open 12" | 139 | 87 | 305 | 138 | 16 | 570 | 620 | 300 | 19 | 24 | 215 | 61 | 230 | 62
Material & Hardness
Material: Ductile Iron FCD60. Slideways hardness: HRC 50. Unit: mm.
Clamping range (mm)
Optional accessory
Technical specifications
Front-pulling angle-lock precision vise designed for accurate workpiece positioning and repeatable setups. Available in Super-Open variants for larger jaw capacity (10" for TV-6, 12" for TV-8).
Key features
- Super-big jaw opening: 10" (TV-6) and 12" (TV-8).
- Patented front-pulling clamping (Patent M338717) for increased clamping force and positioning accuracy.
- Wider fixed jaw secured by four top bolts and a larger keyway to improve alignment and durability.
- Two sides of the vise body provide datum/reference surfaces for setup flexibility.
- Fixed height; multiple units can be mounted side by side for serial machining.
Specifications Table
Unit: mm
Model | A | B | C | D | E | F | G | H | I | J | K | L | M | Weight (kg)
TV-6" Super-Open 10" | 113 | 77 | 250 | 100 | 16 | 455 | 484 | 240 | 19 | 19 | 160 | 44 | 162 | 36
TV-8" Super-Open 12" | 139 | 87 | 305 | 138 | 16 | 570 | 620 | 300 | 19 | 24 | 215 | 61 | 230 | 62
Material & Hardness
Material: Ductile Iron FCD60. Slideways hardness: HRC 50. Unit: mm.
Clamping range (mm)
- TV-6" Super-Open 10": 250 / 329 / 389 / 468
- TV-8" Super-Open 12": 305 / 419 / 469 / 583
Optional accessory
- Swivel base (optional)
Technical specifications
- Series / Model: TV series (Front-Pulling Type)
- Construction: front-pulling angle-lock mechanism (patented)
- Fixed jaw secured by 4 top bolts and enlarged keyway for improved accuracy and life
- Two datum surfaces on vise body for flexible fixturing
- Unit for dimensions: mm
- Recommended applications: precision milling and clamping operations requiring large jaw opening and repeatable datum referencing
