Machine tool vise HG-

for milling machinesmanualquick clamp

Overview

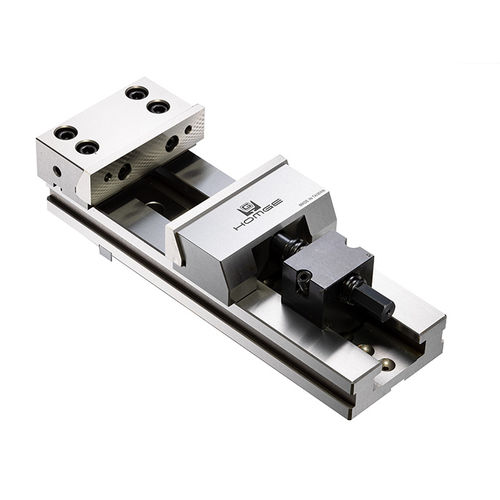

• Steel precision rapid-action vise series designed for CNC milling and general machining on machining centers.
• Instant clamping system with hexagon (Hex-Nut) for quick adjustment with irregular-length workpieces.
• Short movable jaw to maximise opening capacity; compact footprint for optimal workholding on the machine table.

Available models

• HG-100
• HG-150A
• HG-150B
• HG-150C
• HG-150D
• HG-175B
• HG-175C
• HG-175D
• HG-200A
• HG-200B
• HG-200C

Material & Unit
Body: S50C Steel; Slideways hardness: HRC 52–56. Unit: mm.

Standard Accessories

• 2 pcs Alignment wedge
• 4 pcs Clamp

Specifications
(Material: S50C; Hardness: HRC 52–56) Unit: mm
Model | A | B | C | D | E | E1 | e | H | Clamping Force | Weight (kg)
HG-100 | 100 | 100 | 250 | 73±0.02 | 68 | 14 | 37±0.01 | 14 | 1000 kg | 8
HG-150A | 150 | 150 | 350 | 85±0.02 | 95 | 18 | 48±0.01 | 19 | 2000 kg | 23
HG-150B | 150 | 200 | 400 | 85±0.02 | 95 | 18 | 48±0.01 | 19 | 2000 kg | 25
HG-150C | 150 | 250 | 450 | 85±0.02 | 95 | 18 | 48±0.01 | 19 | 2000 kg | 27
HG-150D | 150 | 300 | 500 | 85±0.02 | 95 | 18 | 48±0.01 | 19 | 2000 kg | 29
HG-175B | 175 | 200 | 450 | 85±0.02 | 119 | 18 | 62±0.01 | 19 | 2500 kg | 42
HG-175C | 175 | 250 | 500 | 85±0.02 | 119 | 18 | 62±0.01 | 19 | 2500 kg | 46
HG-175D | 175 | 300 | 550 | 85±0.02 | 119 | 18 | 62±0.01 | 19 | 2500 kg | 51
HG-200A | 205 | 200 | 470 | 85±0.02 | 126 | 18 | 63±0.01 | 19 | 2500 kg | 55
HG-200B | 205 | 250 | 520 | 85±0.02 | 126 | 18 | 63±0.01 | 19 | 2500 kg | 63
HG-200C | 205 | 300 | 570 | 85±0.02 | 126 | 18 | 63±0.01 | 19 | 2500 kg | 73

Features / Technical specifications

• Series: HG- (models listed above).
• Construction: full steel body for dimensional stability and wear resistance.
• Clamping type: instant clamping via hexagon nut for fast changeover between workpiece lengths.
• Slideways hardness: HRC 52–56.
• Clamping force range by model: 1000 kg (HG-100) to 2500 kg (HG-175 / HG-200).
