5-axis machine tool vise ASC-150x210A-100

for machine toolspneumaticspring

Product overview

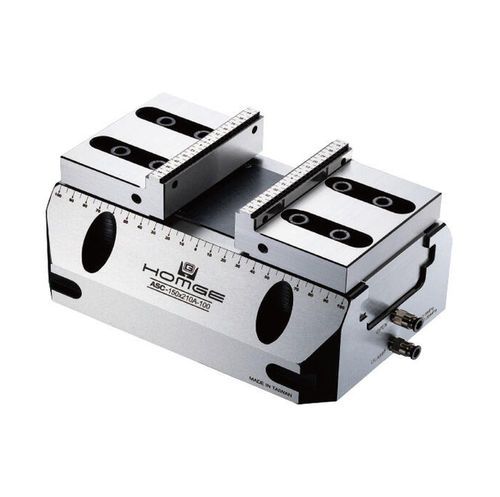

Compact pneumatic self-centering vise designed for 5-axis CNC automation. Provides reliable centering, fast changeover and secure holding for multi-axis machining workflows.

Key advantages

• Quick installation and setup — reduces machine downtime and increases production availability.
• Automation-ready interface — standard pneumatic ports allow integration with robotic cells and multiple vises per CNC.
• Fail-safe holding — spring-loaded mechanism maintains clamp force in case of air loss to protect parts and personnel.

Features

• ONE-TOUCH CHANGEOVER — Button or signal triggered; clamp or release in 1.5 seconds without tools.
• ASSURED ACCURACY — Repeatability ±0.015 mm and stable clamping force for consistent part quality.
• PLUG-AND-PLAY AUTOMATION — Standard air interface supports parallel vises and robot integration for scalable production.
• FAIL-SAFE HOLDING — Spring-loaded design holds parts securely if pneumatic supply is lost.
• ROBUST CONSTRUCTION — Alloy-steel body and hardened jaws retain original accuracy over heavy cycles.
• FLEXIBLE WORKHOLDING — Reversible quick-change jaws adapt rapidly to varied parts and future fixturing needs.

Technical drawing
Technical drawing available for centering stroke, air inlet ports and mounting base dimensions (image available on product page).

SPECIFICATIONS
Model | A | B | C | C1 | E | F | H | J | J1 | K | K1 | K2 | L | O | Q | Q1 | Weight (kg)
ASC-150x210A-100 | 112 | 77 | 59 | 64 | M6 | 210 | 150 | 2.5 | 9.5 | 32 | 35 | 23 | 100 | 80 | 125 | 125 | 17.5

STANDARD ACCESSORIES

• 4 pcs of mounting screws

Technical characteristics / Additional specifications

• Model: ASC-150x210A-100
• Repeatability: ±0.015 mm
• One-touch changeover: clamp/release in ≈1.5 s (button/signal)
• Holding: Fail-safe spring-loaded mechanism
• Body material: S50C steel
• Slideways hardness: HRC 50
• Jaws material: SCM440 alloy steel, hardness HRC 48–50
• Unit: mm
• Mounting thread/port: E = M6
• Key dimensions excerpt: A=112, B=77, C=59, C1=64, F=210, H=150, L=100
• Weight: 17.5 kg
