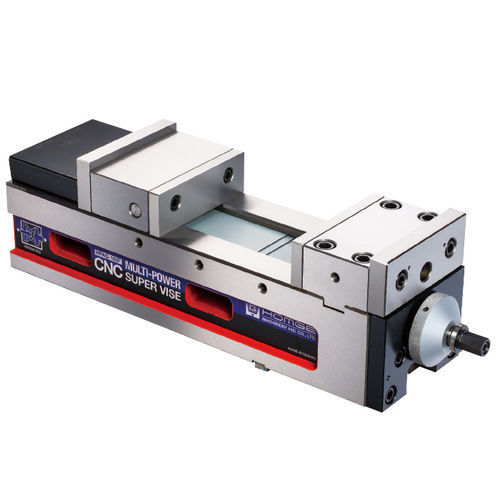

Milling machine vise HPAQ-160F

for machine toolsmultipleinterchangeable jaws

Overview

• Ergonomic front-mount design for easy access, saving operator time and reducing strain.
• Large jaw opening combined with compact overall length for flexible clamping.
• High accuracy and repeatability for precision CNC machining.
• Patented MULTI-POWER mechanical system provides multiplied clamping force up to model limits (0–6000 kg).
• Compatible with HPAQ series features and suitable for heavy-duty, high-precision mould and part machining.

Key features

• 1. Fixed jaw made of high-grade steel hardened to HRC 55. Vise body made of ductile iron (FCD60 or above) for dimensional stability and wear resistance. At 4500 kg load, shape deflection < ±0.005 mm.
• 2. Slideways hardened to HRC 50 to increase durability and maintain positioning height over prolonged use.
• 3. ANGLE-LOCK SYSTEM in compact design, made from high-grade iron (FCD60+), provides high rigidity and pulls the workpiece down to accurate position within ±0.005 mm under 4500 kg pressure.
• 4. Can be mounted horizontally or vertically to suit machine setup.
• 5. Patented MULTI-POWER SYSTEM (high-grade bearing steel) effectively doubles clamping force, ensures consistent pressure and avoids leakage issues typical of hydraulic units.
• 6. Adjustable stop ring for presetting clamping force and repeatable clamping operations at the same force.

Applications

• Fixed height across models enables multiple vises to be used together for multi-station setups.
• Ideal for precision mould making on machining centers and for heavy-duty machining requiring high clamping force with high accuracy.

Standard accessories

• 2 pcs Alignment Wedge
• 4 pcs Clamp
• 1 pc Handle

Optional accessories

• Optional jaws: Cross-grooved, Step, V-jaws for round workpieces, Combined and Front-Back Outer Jaws to expand clamping capacity.

SPECIFICATIONS (unit: mm)
Model | A | B | C | C1 | D | E | F | G | H | I | J | J1 | K | K1 | L | M | Max. Clamping Force | Weight (kg)
HPAQ-160F | 168 | 115±0.01 | 0-290 | 195-480 | 57±0.02 | 18 | 536 | 637 | 161 | 19 | 15 | 20 | 53 | 63 | 101 | 145±0.02 | 5000 kg | 70
HPAQ-200F | 187 | 120±0.01 | 0-330 | 200-550 | 66±0.02 | 18 | 613 | 715 | 201 | 19 | 18 | 24 | 66 | 75 | 99 | 168±0.02 | 6000 kg | 120

Technical specifications

• Brand: HOMGE
• Commercial model (primary): HPAQ-160F (also available HPAQ-200F)
• Material: Vise body = Ductile Iron (FCD60 or above)
• Fixed jaw material: High-quality steel, hardened to HRC 55
• Slideways hardness: HRC 50
• Special systems: ANGLE-LOCK SYSTEM; patented MULTI-POWER mechanical system (high-grade bearing steel)
• Repeatability / accuracy: Pull-down accuracy within ±0.005 mm under 4500 kg pressure
• Max. clamping force: 5000 kg (HPAQ-160F), 6000 kg (HPAQ-200F)
• Weight: 70 kg (HPAQ-160F), 120 kg (HPAQ-200F)
• Jaw opening / stroke examples: HPAQ-160F C: 0-290 mm; HPAQ-200F C: 0-330 mm
• Mounting: Can be mounted horizontally or vertically
• Standard accessories included: alignment wedges (2), clamps (4), handle (1)
• Recommended for: precision mould making and heavy-duty machining on CNC machining centers
