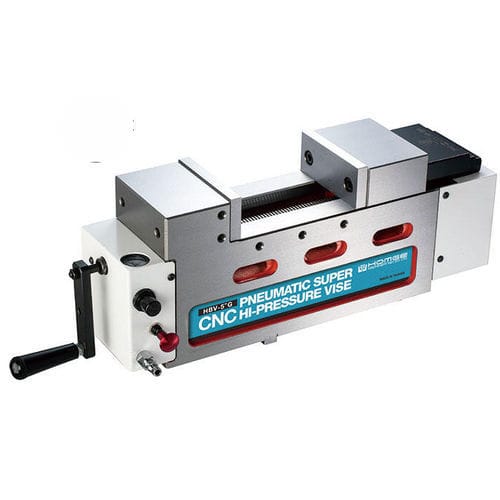

Machine tool vise HBV-GF series

pneumatichorizontalprecision

Product Features: - It's ergonomics for easy reach, thus saves time and prevents back strain - High-Force Cylinders hardly malfunction with 3 Years Warranty - Fixed Height so several vices can be used together Additional Features: - Special High-Force Cylinders are designed to enhance clamping force of 0-5000kg and can be adjusted depending on the material of work-piece. - Vice body is made of Ductile Iron above FCD 60 grade for high precision and durability. - Slide ways are HARDENED to HRC 50° to further increase durability and maintain positioning height over long use. - The special ANGLE-LOCK SYSTEM with compact design for high rigidity automatically pulls the work-piece down to the accurate position. - High-Force Cylinders hardly malfunction. - Special safety device to ensure the vice holds clamping force 20 minutes if the air supply is cut. - Stroke for moveable jaw: 4-4.5 mm. Specifications: (Material: FCD 60 Ductile Iron. Hardness: HRC 50º) Unit: mm Model: HBV-4’’GF, HBV-5’’GF, HBV-6’’GF Standard Accessories: - 2 pcs of Alignment Wedge - 4 pcs of Clamp - 1 pc of Handle Optional Accessories: - Cross Grooved Jaws - V' Jaws - Combined Jaws - Step Jaws Characteristics / Technical Specifications: - Ergonomic design for easy reach - High-Force Cylinders with 3 years warranty - Fixed height for multiple vices usage - Clamping force adjustable up to 5000kg - Body material: FCD 60 Ductile Iron - Slide ways hardened to HRC 50° - Angle-lock system for high rigidity and accurate positioning - Safety device maintains clamping force for 20 minutes if air supply is cut - Moveable jaw stroke: 4-4.5 mm - Standard and optional accessories available
