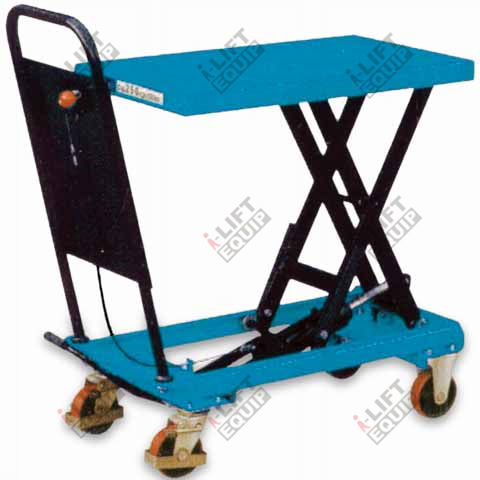

Scissor lift table QT series

hydraulicmobile

Overview

• Range covering capacities from 150 kg to 1000 kg.
• New design compliant with EN1570:1999.
• Hydraulic system ensures a stepless, constant lowering rate independent of load weight, enhancing operator safety and protecting goods.
• Portable configuration with front load and steering wheels Ø150 mm; available variants with extended lift (D) and large table (L).

Models and Technical Table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Table Size mm(in.) | Table Height (Min./Max.) mm(in.) | Front Load Wheel mm(in.) | Steering Wheel mm(in.)
1314001 | QT15 | 150 (330) | 700 x 450 (27.6 x 17.7) | 265 / 755 (10.4 / 29.7) | Φ150 (Φ6) | Φ150 (Φ6)
1314002 | QT25 | 250 (550) | 830 x 500 (32.7 x 19.7) | 330 / 910 (13 / 35.8) | Φ150 (Φ6) | Φ150 (Φ6)
1314003 | QT50 | 500 (1100) | 1010 x 520 (39.8 x 20.5) | 435 / 1000 (17.1 / 39.4) | Φ150 (Φ6) | Φ150 (Φ6)
1314004 | QT75 | 750 (1650) | 1010 x 520 (39.8 x 20.5) | 442 / 1000 (17.4 / 39.4) | Φ150 (Φ6) | Φ150 (Φ6)
1314005 | QT100 | 1000 (2200) | 1010 x 520 (39.8 x 20.5) | 445 / 950 (17.5 / 37.4) | Φ150 (Φ6) | Φ150 (Φ6)
1314006 | QT30D | 300 (660) | 1010 x 520 (39.8 x 20.5) | 435 / 1585 (17.1 / 62.0) | Φ150 (Φ6) | Φ150 (Φ6)
1314007 | QT50D | 500 (1100) | 1010 x 520 (39.8 x 20.5) | 440 / 1580 (17.3 / 62.2) | Φ150 (Φ6) | Φ150 (Φ6)
1314008 | QT80D | 800 (1760) | 1010 x 520 (39.8 x 20.5) | 470 / 1410 (18.5 / 55.5) | Φ150 (Φ6) | Φ150 (Φ6)
1314009 | QT50L | 500 (1100) | 1525 x 620 (60 x 24.4) | 400 / 1100 (15.7 / 43.3) | Φ150 (Φ6) | Φ150 (Φ6)

Technical specifications

• QT15 (i-LIFT NO. 1314001): Capacity 150 kg (330 lb); Table Size 700 x 450 mm (27.6 x 17.7 in); Table Height Min/Max 265 / 755 mm (10.4 / 29.7 in); Wheels Φ150 mm (Φ6 in).
• QT25 (i-LIFT NO. 1314002): Capacity 250 kg (550 lb); Table Size 830 x 500 mm (32.7 x 19.7 in); Table Height Min/Max 330 / 910 mm (13 / 35.8 in); Wheels Φ150 mm (Φ6 in).
• QT50 (i-LIFT NO. 1314003): Capacity 500 kg (1100 lb); Table Size 1010 x 520 mm (39.8 x 20.5 in); Table Height Min/Max 435 / 1000 mm (17.1 / 39.4 in); Wheels Φ150 mm (Φ6 in).
• QT75 (i-LIFT NO. 1314004): Capacity 750 kg (1650 lb); Table Size 1010 x 520 mm (39.8 x 20.5 in); Table Height Min/Max 442 / 1000 mm (17.4 / 39.4 in); Wheels Φ150 mm (Φ6 in).
• QT100 (i-LIFT NO. 1314005): Capacity 1000 kg (2200 lb); Table Size 1010 x 520 mm (39.8 x 20.5 in); Table Height Min/Max 445 / 950 mm (17.5 / 37.4 in); Wheels Φ150 mm (Φ6 in).
• QT30D (i-LIFT NO. 1314006): Capacity 300 kg (660 lb); Table Size 1010 x 520 mm (39.8 x 20.5 in); Table Height Min/Max 435 / 1585 mm (17.1 / 62.0 in); Wheels Φ150 mm (Φ6 in).
• QT50D (i-LIFT NO. 1314007): Capacity 500 kg (1100 lb); Table Size 1010 x 520 mm (39.8 x 20.5 in); Table Height Min/Max 440 / 1580 mm (17.3 / 62.2 in); Wheels Φ150 mm (Φ6 in).
• QT80D (i-LIFT NO. 1314008): Capacity 800 kg (1760 lb); Table Size 1010 x 520 mm (39.8 x 20.5 in); Table Height Min/Max 470 / 1410 mm (18.5 / 55.5 in); Wheels Φ150 mm (Φ6 in).
• QT50L (i-LIFT NO. 1314009): Capacity 500 kg (1100 lb); Table Size 1525 x 620 mm (60 x 24.4 in); Table Height Min/Max 400 / 1100 mm (15.7 / 43.3 in); Wheels Φ150 mm (Φ6 in).
