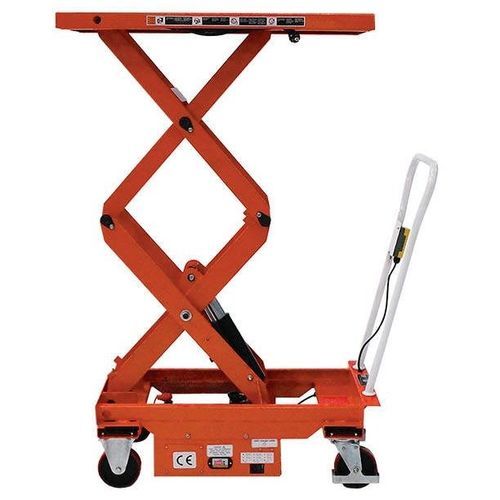

Scissor lift table ES series

electricbattery-poweredelectro-hydarulic

Product overview
ES-Series semi-electric scissor lift table designed to quickly and easily lift and lower loads with capacities from 500 to 1000 kg. Battery-operated unit features Curtis controller and Hall accelerator for controlled lifting, lowering and movement. Powered by a 12 V DC battery with on-board charger and maintenance battery.

Features

• Semi-electric scissor lift table with capacity of 500 to 1000 kg depending on model
• 8 models available with lift heights from 450 to 1618 mm depending on model
• 700 W motor with hydraulic pump (manufactured in Europe)
• Electric elevation
• 12 V / 75 Ah battery
• 2 × Ø150 mm fixed front wheels and 2 × braked swivel castors
• Recommendation: allow at least 3 minutes between duty cycles to protect motor/pump assembly
• Optional: position control system (configurable adjustment range)

Applications
Ideal for lifting, positioning and transporting heavy loads over short distances in workshops, factories, warehouses or offices. Robust structure while remaining relatively lightweight.

Models and key dimensions
Header: i-LIFT NO. | Model No. | Capacity kg(lb.) | Table Size mm(in.) | Table Height (Min./Max.) mm(in.) | Front Load Wheel mm(in.) | Steering Wheel mm(in.)
Row: - | ES50 | 500 | 1010×520 | 450/950 | Ø150 (Ø6) | Ø150 (Ø6)
Row: - | ES75 | 750 | 1010×520 | 450/950 | Ø150 (Ø6) | Ø150 (Ø6)
Row: - | ES50D | 500 | 1010×520 | 495/1618 | Ø150 (Ø6) | Ø150 (Ø6)
Row: - | ES80D | 800 | 1010×520 | 510/1460 | Ø150 (Ø6) | Ø150 (Ø6)
Row: - | ES100 | 1000 | 1010×520 | 490/950 | Ø150 (Ø6) | Ø150 (Ø6)
Row: - | ES50LA | 500 | 1525×620 | 440/1150 | Ø150 (Ø6) | Ø150 (Ø6)
Row: - | ES50LB | 500 | 1200×800 | 430/1220 | Ø150 (Ø6) | Ø150 (Ø6)
Row: - | ES100L | 1000 | 1200×800 | 430/1220 | Ø150 (Ø6) | Ø150 (Ø6)

Technical specifications

• Capacity range: 500–1000 kg (model dependent)
• Lift height range: approx. 450 mm up to 1618 mm depending on model
• Table sizes available: 1010×520 mm, 1200×800 mm, 1525×620 mm
• Motor: 700 W (electric motor with hydraulic pump)
• Power supply: 12 V / 75 Ah battery with on-board charger
• Wheels: front load wheels Ø150 mm; steering wheels Ø150 mm; combination of fixed and braked swivel castors
• Duty cycle guidance: allow ≥3 minutes between cycles for motor/pump cooling and longevity
• Optional: position control system (configurable adjustment range)
