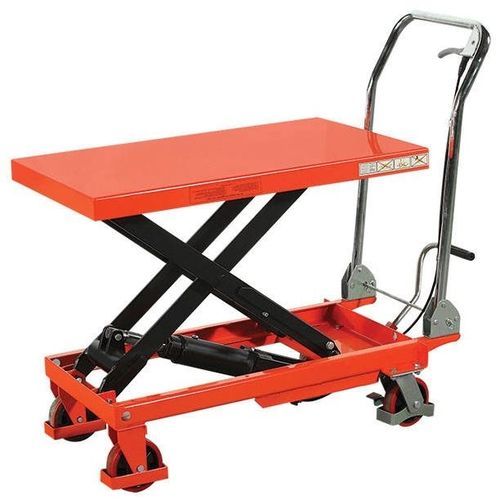

Hydraulic lift table STF-N series

manualfoot-operatedmobile

Overview
Budget Manual Lift Table series provides a practical solution for routine lifting and material-handling tasks. Available in 150 kg, 300 kg and 500 kg capacities, the units use a hydraulic lift operated by a foot pump and a release lever for controlled lowering. Each trolley features a foldable handle and two fixed plus two braked swivel casters for maneuverability. Platform sizes and maximum lift heights vary by model, making the series suitable for workshops, warehouses and light industrial environments that require a compact, easy-to-operate lifting table.

Details of STF-N Budget Manual Lift Table

• Available capacities: 150 kg (STF15N), 300 kg (STF30N), 500 kg (STF50N)
• Hydraulic lifting mechanism
• Foot-operated pump for hands-free lifting
• Release lever on top of handle for smooth, controlled descent
• Foldable handle for compact storage
• 2 × fixed wheels and 2 × braked swivel casters
• Economical model designed for daily handling tasks
• Maximum lift heights: STF15N 740 mm; STF30N 890 mm; STF50N 880 mm
• Platform dimensions: STF15N 700 × 450 mm; STF30N and STF50N 815 × 500 mm

Models and Dimensions (table)

• STF15N — Capacity: 150 kg | Table size: 700 × 450 mm | Table height (Min/Max): 220 / 740 mm | Front load wheel: — | Steering wheel: Φ100×25 mm
• STF30N — Capacity: 300 kg | Table size: 815 × 500 mm | Table height (Min/Max): 290 / 890 mm | Front load wheel: — | Steering wheel: Φ125×40 mm
• STF50N — Capacity: 500 kg | Table size: 815 × 500 mm | Table height (Min/Max): 290 / 880 mm | Front load wheel: — | Steering wheel: Φ125×40 mm

Features / Technical specifications

• Capacities: 150 kg (STF15N), 300 kg (STF30N), 500 kg (STF50N)
• Lifting type: manual hydraulic system
• Pump: foot-operated
• Controlled descent via release lever mounted on handle
• Handle: foldable for compact storage
• Wheels/casters: 2 fixed wheels and 2 braked swivel casters (wheel sizes vary by model)
• Table heights (min/max): STF15N 220 / 740 mm; STF30N 290 / 890 mm; STF50N 290 / 880 mm
• Platform dimensions: STF15N 700 × 450 mm; STF30N & STF50N 815 × 500 mm
• Front/steering wheel diameters: STF15N Φ100×25 mm; STF30N & STF50N Φ125×40 mm
• Intended use: handling and lifting of light loads in workshops, warehouses or light industrial settings
