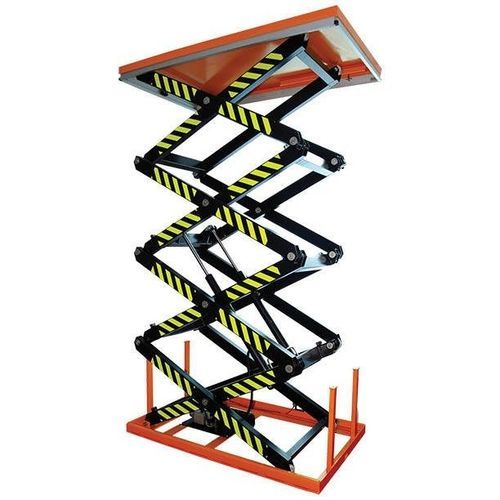

Four-scissor lift table SHF series

electrichydraulicelectro-hydarulic

Product overview
The electric quadruple scissor lift table SHF series provides high vertical reach in a compact footprint for industrial, warehouse and maintenance applications. Available in 400 kg and 800 kg capacities with maximum lift heights up to 4210 mm, the series integrates a Bucher hydraulic power unit, self-lubricated moving parts and multiple safety devices for controlled lifting at height.

Details

• Electric quadruple scissors lift table: 400 kg or 800 kg capacity
• Platform dimension: 1700 × 1000 mm
• Lift height min / max: 600 / 4140 mm (SHF400) or 706 / 4210 mm (SHF800)
• Bucher hydraulic electro-pump
• Self-lubricated rollers and bushings
• Safety clearance to prevent trapping
• Shear protection
• Lowering speed control valve
• Hose burst valve
• Quadruple scissors mechanism
• Safety trip bars
• Upper travel limit switch
• Hand controller with 4 m cable

Options

• 220V single-phase

Technical specifications

• Model: SHF400
  Capacity: 400 kg (880 lb)
  Lowered Height: 600 mm (23.6 in)
  Raised Height: 4140 mm (163 in)
  Platform Size: 1700 × 1000 mm (67 × 39.4 in)
  Base Frame Size: 1600 × 1000 mm (63 × 39.4 in)
• Model: SHF800
  Capacity: 800 kg (1760 lb)
  Lowered Height: 706 mm (27.8 in)
  Raised Height: 4210 mm (165.7 in)
  Platform Size: 1700 × 1000 mm (67 × 39.4 in)
  Base Frame Size: 1606 × 1010 mm (63.2 × 39.8 in)
