Scissor lift table HULC1000

electricstationaryfor assembly

Product Overview

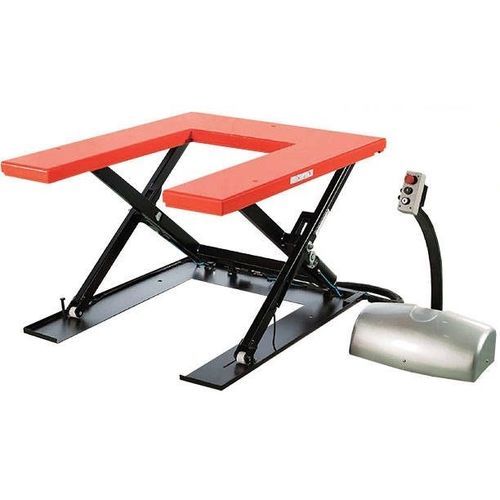

The HULC1000 U-shaped electric lift table is a super-low powered platform designed to raise and position palletized loads without a loading ramp or pit. The U-shaped platform allows direct loading with a pallet truck for packaging, assembly and pallet handling operations in warehouses and production areas. The unit integrates a 0.75 kW (380 V / 50 Hz) motor and a built-in power unit. Standard controls include a hand controller, ignition key and 3 m cable. Safety clearance features help reduce the risk of trapping during operation, supporting safe use in industrial environments.

Key features

• U-shaped low-profile electric lift table with 1,000 kg rated capacity
• Platform dimensions: 1450 × 1140 mm
• Inner U platform dimensions: 1050 × 580 mm for direct pallet truck access
• Lift range (min / max): 80 / 760 mm
• Super-low profile — no ramp or pit required
• Includes built-in power unit
• Standard equipment: hand controller, ignition key, 3 m cable
• Safety clearance to help prevent trapping during use
• Driven by 0.75 kW motor (380 V / 50 Hz)

Model specifications (table)
i-LIFT NO., Model No., Capacity kg(lb.), Lowered Height mm(in.), Raised Height mm(in.), Platform Size mm(in.), Lift Time (sec.)
, HULC1000, 1000, 80, 760, 1450×1140, 18

Technical specifications

• Rated capacity: 1,000 kg
• Platform size: 1450 × 1140 mm
• Inner U platform: 1050 × 580 mm
• Lowered height: 80 mm
• Raised height: 760 mm
• Lift time: 18 s
• Motor: 0.75 kW, 380 V / 50 Hz
• Includes: built-in power unit, hand controller, ignition key, 3 m cable
• Design: U-shaped for direct pallet truck loading; super-low profile (no ramp or pit required)
• Safety: safety clearance to help prevent trapping during operation
