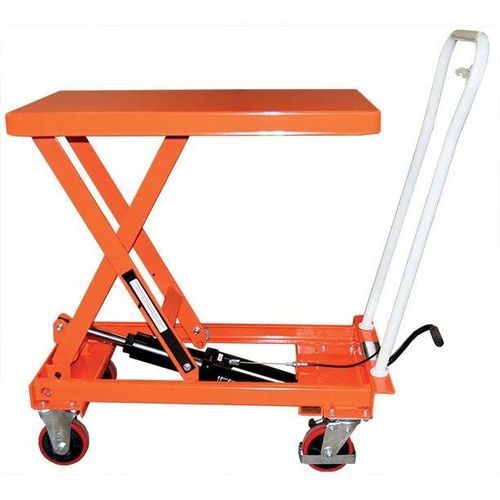

Scissor lift table BS series

hydraulicmanualfoot-operated

Product Overview
The BS-Series manual lift table is a foot-operated hydraulic platform designed to lift, position and transport heavy loads safely and efficiently in workshops, warehouses, production lines and maintenance areas. Constructed from epoxy-painted steel for industrial use, it lifts via a foot pump and features a release lever on the handle for smooth, controlled lowering. The BS-Series includes five models (BS15, BS25, BS50, BS75, BS100) with capacities from 150 kg to 1000 kg and maximum lift heights up to 1400 mm. The product is covered by a three-year warranty.

Key features

• Manual hydraulic lift table with foot pump operation
• Capacity options: 150, 250, 500, 750, 1000 kg
• Maximum lift heights vary by model, up to 1400 mm
• Epoxy-painted steel construction for industrial environments
• Release lever on handle for controlled lowering
• Foldable handle for compact storage
• 2 fixed wheels and 2 braked swivel casters
• Suitable for workshops, warehouses, production lines and maintenance
• Three-year warranty

Models and specifications
BS15 — Capacity: 150 kg (330 lb); Table size L×W: 700×450 mm (27.6×17.7 in); Table height (Min/Max): 260 / 755 mm; Wheels: Ø100 mm front and steering.
BS25 — Capacity: 250 kg (550 lb); Table size L×W: 830×500 mm (32.7×19.7 in); Table height (Min/Max): 335 / 915 mm; Wheels: Ø125 mm.
BS50 — Capacity: 500 kg (1100 lb); Table size L×W: 1010×520 mm (39.8×20.5 in); Table height (Min/Max): 430 / 1400 mm; Wheels: Ø150 mm.
BS75 — Capacity: 750 kg (1650 lb); Table size L×W: 1010×520 mm (39.8×20.5 in); Table height (Min/Max): 440 / 1400 mm; Wheels: Ø150 mm.
BS100 — Capacity: 1000 kg (2200 lb); Table size L×W: 1010×520 mm (39.8×20.5 in); Table height (Min/Max): 445 / 980 mm; Wheels: Ø150 mm.

Technical specifications

• Series name: BS-Series
• Product type: Manual/foot-operated hydraulic lift table
• Material: Epoxy-painted steel
• Operation: Foot pump for lifting; release lever on handle for lowering
• Handle: Foldable
• Wheels/casters: 2 fixed + 2 braked swivel casters; diameters vary by model
• Available models: BS15, BS25, BS50, BS75, BS100
• Capacity range: 150 kg to 1000 kg (330–2200 lb)
• Maximum lift height: Up to 1400 mm (model-dependent)
• Warranty: Three-year warranty
