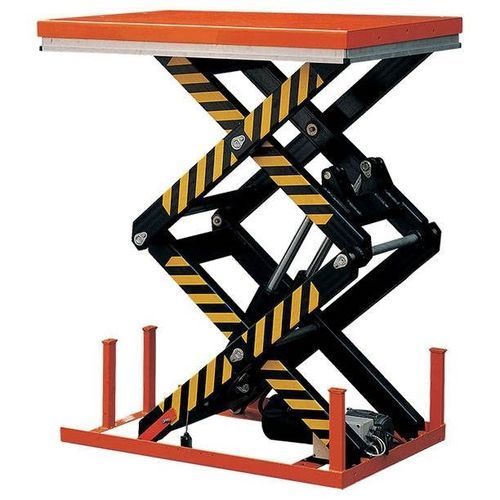

Double-scissor lift table HD series

electricelectro-hydarulicstationary

Product overview
The electric double scissor lift table HD-Series is a stationary heavy-duty lifting solution engineered for applications requiring increased lifting height and higher load capacity. It is suited to industrial, warehouse and production environments where stable, controlled lifting and reliable safety features are required.

Key features

• Electric double scissors configuration
• Capacity range: 1 to 4 metric tons
• Bucher hydraulic electro-pump
• Protection rating: IP54
• Complies with CE standards
• Fully assembled and tested, ready for installation
• Equipped with high-grade components for operational reliability
• Safety clearance to prevent trapping during operation
• Shear protection
• Self-lubricated rollers and bushings
• Lowering speed control valve
• Hose burst valve
• Upper travel limit switch
• Hand controller with 4 m cable

Options

• Position control system (specify adjustment range when ordering)
• 220 V single-phase supply

Available models (stationary scissor lift table details)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Lowered Height mm(in.) | Raised Height mm(in.) | Platform Size mm(in.) | Base Frame Size mm(in.)
— | HD1000 | 1000 (2200) | 305 (12) | 1780 (70.1) | 1300×820 | 1240×640
— | HD2000 | 2000 (4400) | 360 (14.2) | 1780 (70.1) | 1300×850 | 1220×785
— | HD4000 | 4000 (8800) | 400 (15.7) | 2050 (80.7) | 1700×1200 | 1600×900

Notes
Three models cover a range of capacities and platform sizes. Downloadable product specifications (not included here) provide further technical data and comparative capacity/dimension tables.
