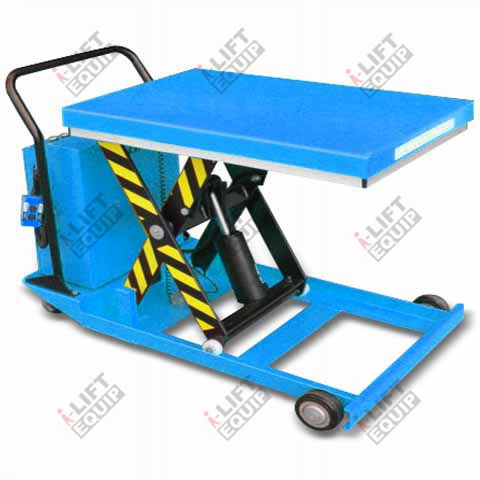

Scissor lift table BZ70A

electrichydraulicmanual

Product
BZ/EZ SERIES mobile lift table designed for material handling and positioning in industrial environments.

Key features

• Low-profile scissor design with minimum height 230 mm (9 in) for easy loading.
• Foot-operated hydraulic pump (manual type) for precise control.
• Electric version available meeting EN1570 and ASME safety standards.
• Two table sizes and model variants with capacities 700–750 kg.

Models and technical table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Table Size mm(in.) | Table Height (Min./Max.) mm(in.) | Front Load Wheel mm(in.) | Steering Wheel mm(in.)
1310101 | BZ70A | 700 (1540) | 916×610 (36.1×31.5) | 230/840 (9.1/33.1) | φ125 (φ5) | φ100 (φ4)
1310102 | BZ70B | 700 (1540) | 1220×610 (47.2×31.5) | 230/1065 (9.1/41.9) | φ125 (φ5) | φ100 (φ4)
1310103 | EZ75A | 750 (1650) | 916×610 (36.1×31.5) | 230/840 (9.1/33.1) | φ125 (φ5) | φ100 (φ4)
1310104 | EZ75B | 750 (1650) | 1220×610 (47.2×31.5) | 230/1065 (9.1/41.9) | φ125 (φ5) | φ100 (φ4)

Specifications

• Series: BZ/EZ SERIES Mobile Lift Table
• Models: BZ70A (1310101), BZ70B (1310102), EZ75A (1310103), EZ75B (1310104)
• Capacity: 700 kg (1540 lb) for BZ70A/B; 750 kg (1650 lb) for EZ75A/B
• Table sizes: 916×610 mm (36.1×31.5 in) and 1220×610 mm (47.2×31.5 in)
• Table height (Min./Max.): 230/840 mm (9.1/33.1 in) and 230/1065 mm (9.1/41.9 in) depending on model
• Front load wheel diameter: φ125 mm (φ5 in)
• Steering wheel diameter: φ100 mm (φ4 in)
• Minimum profile height: 230 mm (9 in)
• Operation: foot-operated hydraulic pump (manual type); electric type meets EN1570 and ASME safety standards
