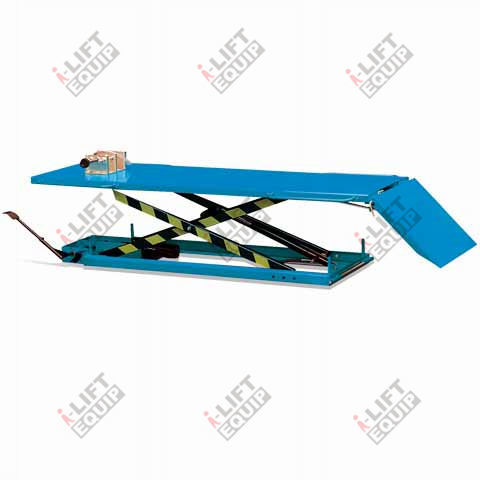

Mobile scissor lift TC500

hydraulicworkshoplow-level

Overview
The TC500 is a foot-operated hydraulic scissor lift designed for professional motorcycle maintenance and repair workshops. It provides a stable working platform with an extractable rear panel and a mechanical front-wheel block to facilitate wheel removal and secure positioning. Capacity: 500 kg.

Key features

• 500 kg lifting capacity for a wide range of motorcycles.
• Foot-operated hydraulic pump for controlled lifting.
• Scissor-structure design for stability and long service life.
• Built-in overload valve and mechanical stopping devices allowing lifting and lowering to be stopped at any position.
• Front-wheel blocking mechanical device for safe immobilization.
• Extractable rear panel to remove the rear wheel without detaching the lift slide.
• Designed for professional workshop use.

Technical data

• i-LIFT NO.: 1311902
• Model: TC500
• Capacity: 500 kg (1,100 lb)
• Min. platform height: 170 mm (6.7 in)
• Max. platform height: 800 mm (31.5 in)
• Platform size: 2200 × 700 mm (86.6 × 27.6 in)
• Net weight: 235 kg (517 lb)
• Foot-operated hydraulic pump
• Overload protection valve and mechanical stopping devices
• Front-wheel blocking device
• Extractable rear panel for wheel dismounting
