Scissor lift table HU series

electricelectro-hydarulicstationary

Product Overview

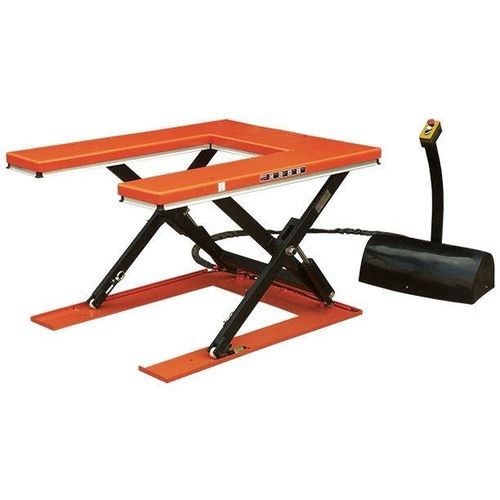

U-shaped electric lift table of the HU series (examples: HU1000 and HU1500). Low-profile scissor design with an inner U-platform allows hand pallet truck access between the scissors for direct pallet placement. Bucher hydraulic electro-pump ensures stable lifting. Safety bar under the tabletop stops descent on obstacle detection. Overload protection and explosion-proof valve prevent rapid platform descent in case of oil pipe failure. Internal power pack includes safety valve and compensation flow switch for overload prevention and low-speed control.

Key Features

• U-shaped electric lift table available in multiple capacities (models include HU600, HU1000, HU1500, HU2000)
• Load capacity examples: 1000 kg or 1500 kg depending on model
• Platform low folded height: 85 mm (no pit or ramp required)
• Bucher hydraulic electro-pump
• Inner U-platform permits hand pallet truck to run between scissors for direct pallet placement
• Push-button handle controller with dead man switch for industrial use
• Safety features: safety bar under tabletop, overload protection, explosion-proof valve, safety valve, compensation flow switch, anti-pinching shear fork
• Lowering speed control valve for controlled descent
• Suitable for palletizing and packing stations, manufacturing and maintenance environments

Details of U-shaped Electric Lift Table

• Platform dimensions (HU1000): 1450 × 1140 mm
• Platform dimensions (HU1500): 1600 × 1160 mm
• Inner U-platform dimensions: 1050 × 585 mm
• Low folded height: 85 mm
• Raised height (example models): 860 mm
• Lift time (example models): HU1000 = 25 s; HU1500 = 30 s

Options

• Position control system (specify adjustment range when ordering)

Models and Technical Data
i-LIFT NO. | Model No. | Capacity kg(lb.) | Lowered Height mm(in.) | Raised Height mm(in.) | Platform Size mm(in.) | Lift Time (sec.)
— HU1000 | HU1000 | 1000 | 85 | 860 | 1450×1140 | 25
— HU1500 | HU1500 | 1500 | 85 | 860 | 1600×1160 | 30

Technical specifications

• Series: HU-Series
• Available models: HU600, HU1000, HU1500, HU2000 (customization available)
• Capacity examples: 1000 kg and 1500 kg
• Platform sizes: HU1000 = 1450 × 1140 mm; HU1500 = 1600 × 1160 mm
• Inner U-platform: 1050 × 585 mm
• Lowered (folded) height: 85 mm
• Raised height (example models): 860 mm
• Lift time (example models): HU1000 = 25 s; HU1500 = 30 s
• Hydraulic pump: Bucher hydraulic electro-pump
• Controls: push-button handle controller with dead man switch
• Safety: safety bar under tabletop, overload protection, explosion-proof valve, safety valve, compensation flow switch, anti-pinching shear fork, lowering speed control valve
• Applications: palletizing, packing stations, manufacturing and maintenance industries
