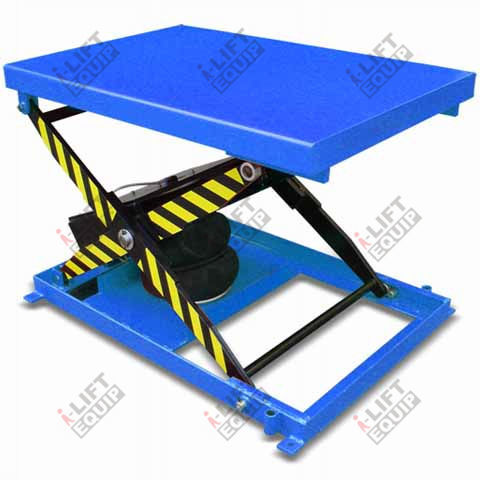

Bellows lift table QN1000

pneumaticmobilefor assembly

Product Overview

• Complies with EN1570 and ANSI/ASME safety standards.
• Air-bag activation provides lift without electricity or hydraulic power.
• Compact and mobile design for material handling and assembly tasks.
• Reduced maintenance compared with conventional hydraulic lift tables.

Product Table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Height mm(in.) | Max. Height mm(in.) | Platform Size mm(in.) | Base Frame Size mm(in.)
1312301 | QN1000 | 1000 (2200) | 230 (9) | 840 (33) | 1220×812 (48×32) | 1220×785 (48×31)

Technical specifications

• Model No.: QN1000
• i-LIFT No.: 1312301
• Capacity: 1000 kg (2200 lb)
• Minimum Height: 230 mm (9 in)
• Maximum Height: 840 mm (33 in)
• Platform Size: 1220 × 812 mm (48 × 32 in)
• Base Frame Size: 1220 × 785 mm (48 × 31 in)
• Activation system: Air bag — safe and clean operation; no electricity or hydraulics required
• Standards: EN1570, ANSI/ASME
• Suitable applications: production lines, parts transfer, ergonomic workstation positioning
