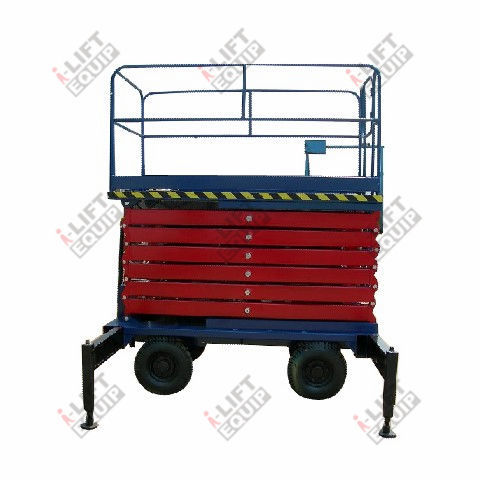

Stationary scissor lift SJY-LD series

electricbattery-poweredhydraulic

Product Overview
The SJY-LD series scissor aerial work platform is a stationary/liftable work platform designed for safe, elevated access in industrial and construction applications. Its scissor-type mechanism provides stable vertical lifting while the spacious platform and high load capacity allow multiple operators and tools to work simultaneously. The range covers models with varying platform sizes, lifting heights and capacities to suit different on-site needs.

Features

• Main structure constructed from high-strength manganese steel for structural durability.
• Built-in overload protection system to prevent operation beyond rated capacity.
• Drop-protection device to secure the platform in case of failure.
• Emergency descent device for controlled lowering under fault conditions.

Optional Parts Of The Lift Table

• AC-380V power supply (standard size).
• AC-220V power supply.
• DC power supply.
• Manual hydraulic power unit.
• Manual/electrical power combination.

Models (technical data)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Min. Platform Height mm(in.) | Max. Platform Height mm(in.) | Platform Size mm(in.) | Elevating Time (sec.)
2430101 | SJY0303 | 300 (660) | 800 (31.5) | 3000 (118.1) | 1300×700 (51.2×27.6) | 16
2430102 | SJY0503 | 500 (1100) | 1000 (39.4) | 3000 (118.1) | 1300×850 (51.2×34.6) | 16
2430103 | SJY0304 | 300 (660) | 1100 (43.3) | 4500 (177.2) | 1300×850 (51.2×34.6) | 31
2430104 | SJY0504 | 500 (1100) | 980 (38.6) | 4500 (177.2) | 1300×850 (51.2×34.6) | 31
2430105 | SJY0306 | 300 (660) | 980 (38.6) | 6000 (236.2) | 1800×880 (70.9×34.6) | 49
2430106 | SJY0506 | 500 (1100) | 980 (38.6) | 6000 (236.2) | 1800×880 (70.9×34.6) | 54
2430107 | SJY0307 | 300 (660) | 1200 (47.2) | 7500 (295.3) | 1800×1000 (70.9×39.4) | 62
2430108 | SJY0507 | 500 (1100) | 1280 (50.4) | 7500 (295.3) | 1800×1000 (70.9×39.4) | 62
2430109 | SJY0309 | 300 (660) | 1620 (63.8) | 9000 (354.3) | 1800×1000 (70.9×39.4) | 72
2430110 | SJY0509 | 500 (1100) | 1620 (63.8) | 9000 (354.3) | 1800×1000 (70.9×39.4) | 81
2430111 | SJY0510 | 500 (1100) | 1620 (63.8) | 10000 (433.1) | 2100×1150 (82.7×45.3) | 65
2430112 | SJY0311 | 300 (660) | 1620 (63.8) | 11000 (433.1) | 2100×1150 (82.7×45.3) | 73
2430113 | SJY0511 | 500 (1100) | 1620 (63.8) | 11000 (433.1) | 2100×1150 (82.7×45.3) | 80
2430114 | SJY0312 | 300 (660) | 1820 (71.7) | 12000 (472.4) | 2450×1350 (96.5×53.1) | 85
2430115 | SJY0512 | 500 (1100) | 1820 (71.7) | 12000 (472.4) | 2450×1350 (96.5×53.1) | 90
2430116 | SJY0314 | 300 (660) | 1980 (78) | 14000 (551.2) | 2450×1350 (96.5×53.1) | 98
2430117 | SJY0514 | 500 (1100) | 1980 (78) | 14000 (551.2) | 2450×1350 (96.5×53.1) | 120
2430118 | SJY0316 | 300 (660) | 2140 (84.3) | 16000 (629.9) | 2800×1500 (110.2×59) | 130

Technical specifications

• Main structure: high-strength manganese steel.
• Built-in safety systems: overload protection, drop protection and emergency descent device.
• Available power options: AC-380V, AC-220V, DC, manual hydraulic, manual/electrical.
• Available capacities: 300 kg (660 lb) and 500 kg (1100 lb) depending on model.
• Platform dimensions and maximum heights vary by model; refer to model table for exact dimensions and elevating times.
