Scissor lift table AS series
hydraulicmobile

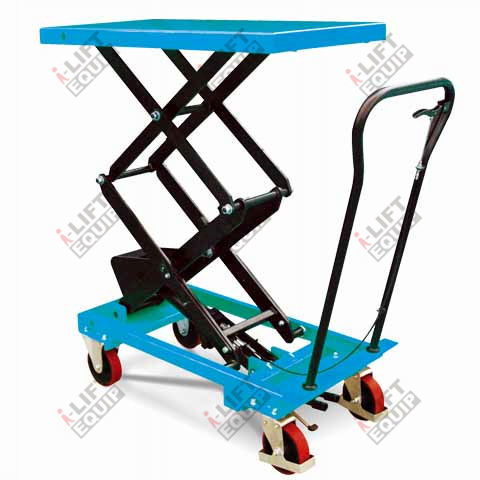

Scissor lift table - AS series - i-lift Equipment Ltd. - hydraulic / mobile
Scissor lift table - AS series - i-lift Equipment Ltd. - hydraulic / mobile
Add to favorites
Compare this product
Go to the i-lift Equipment Ltd. website for more information

Characteristics

Technology
scissor
Operation
hydraulic
Type
mobile
Capacity

Max.: 800 kg
(1,763.7 lb)

Min.: 200 kg
(440.9 lb)

Lifting height

Max.: 1,500 mm
(59 in)

Min.: 265 mm
(10 in)

Tray length

Max.: 92 cm
(36.22 in)

Min.: 70 cm
(27.56 in)

Tray width

Max.: 52 cm
(20.47 in)

Min.: 45 cm
(17.72 in)

Description

Product Overview
  • Designed to comply with EN1570:1999.
  • New hydraulic system with integrated safety features and load protection; stepless lowering rate independent of load weight.
  • Offered in multiple models covering capacities from 200 kg to 800 kg and table sizes up to 920×520 mm.


Models and Specifications (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Table Size mm(in.) | Table Height (Min./Max.) mm(in.) | Front Load Wheel mm(in.) | Steering Wheel mm(in.)
1310301 | AS20 | 200 (440) | 700×450 (27.6×17.7) | 265/755 (10.4/29.7) | Φ100 (Φ4) | Φ100 (Φ4)
1310302 | AS30 | 300 (660) | 852×502 (33.5×19.8) | 330/910 (13/35.8) | Φ125 (Φ5) | Φ125 (Φ5)
1310303 | AS50 | 500 (1100) | 852×502 (33.5×19.8) | 390/910 (15.4/35.8) | Φ125 (Φ5) | Φ125 (Φ5)
1310304 | AS80 | 800 (1760) | 920×520 (36.2×20.5) | 442/1000 (17.4/39.4) | Φ150 (Φ6) | Φ150 (Φ6)
1310305 | AS35D | (not specified) | 920×520 (36.2×20.5) | 435/1500 (17.1/59) | Φ150 (Φ6) | Φ150 (Φ6)

Technical Characteristics / Specifications
  • Series: AS SERIES (Mobile Lift Table)
  • Manufacturer / Brand: i-LIFT
  • Design standard: EN1570:1999
  • Hydraulic system: new hydraulic system with safety features and load protection; stepless lowering rate regardless of load weight
  • Model AS20 — Capacity: 200 kg (440 lb); Table size: 700×450 mm (27.6×17.7 in); Height (Min./Max.): 265/755 mm (10.4/29.7 in); Wheels: Φ100 mm (Φ4 in)
  • Model AS30 — Capacity: 300 kg (660 lb); Table size: 852×502 mm (33.5×19.8 in); Height (Min./Max.): 330/910 mm (13/35.8 in); Wheels: Φ125 mm (Φ5 in)
  • Model AS50 — Capacity: 500 kg (1100 lb); Table size: 852×502 mm (33.5×19.8 in); Height (Min./Max.): 390/910 mm (15.4/35.8 in); Wheels: Φ125 mm (Φ5 in)
  • Model AS80 — Capacity: 800 kg (1760 lb); Table size: 920×520 mm (36.2×20.5 in); Height (Min./Max.): 442/1000 mm (17.4/39.4 in); Wheels: Φ150 mm (Φ6 in)
  • Model AS35D — Capacity not specified; Table size: 920×520 mm (36.2×20.5 in); Height (Min./Max.): 435/1500 mm (17.1/59 in); Wheels: Φ150 mm (Φ6 in)
  • Product category: Mobile Lift Table / Access Lift and Lift Table
