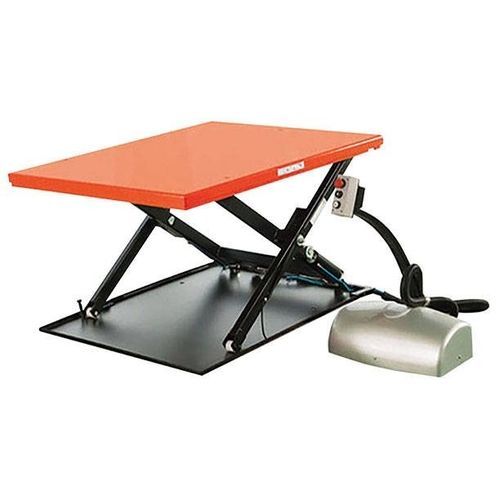

Scissor lift table HYLC1000

electricstationaryfor workshops

Overview
The HYLC1000 low-profile electric lift table is a motorized lifting platform for easy loading and lifting of heavy goods directly from floor level. Its low-profile frame allows pallets, carts or equipment to be rolled onto the platform without pit installation, offering an economical solution for warehouses, workshops and production lines.

Key Features

• Low-profile electric lift table with 1000 kg load capacity
• Platform dimensions: 1450 x 1140 mm
• Lift height min. / max.: 82 / 760 mm
• Driven by 380 V / 50 Hz, 0.75 kW motor
• Lift time: approx. 18 seconds
• Single 3 m cable for power unit and hand control
• Safety clearance protection to reduce risk of trapping during operation
• Access ramp included for direct loading and unloading

Technical Table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Lowered Height mm(in.) | Raised Height mm(in.) | Platform Size mm(in.) | Lift Time (sec.)
-- | HYLC1000 | 1000 | 82 | 760 | 1450×1140 | 18

Technical specifications

• Model: HYLC1000
• Capacity: 1000 kg
• Platform dimensions: 1450 x 1140 mm
• Lowered height: 82 mm
• Raised height: 760 mm
• Motor: 0.75 kW
• Power supply: 380 V / 50 Hz
• Lift time: ~18 seconds
• Control: single 3 m cable for power unit and hand control
• Safety: safety clearance protection to prevent trapping
• Accessories: access ramp included
