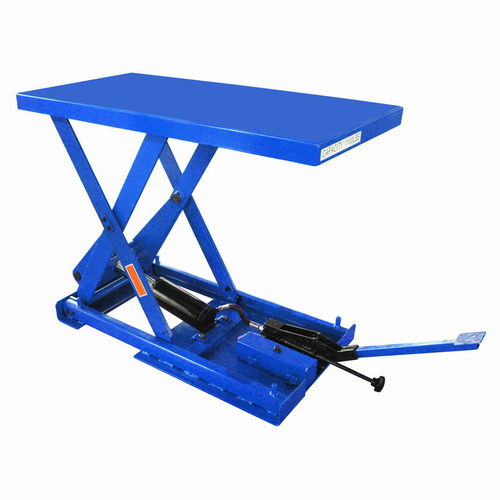

Stationary scissor lift FBX series

hydraulicworkshopfor industrial applications

Product Overview

• Heavy-duty scissor lift table for stationary use, operated by a foot pump with optional hand control release.
• Updated design compliant with EN1570:1999.
• Available in multiple capacities and table sizes to suit workshop and industrial handling applications.

Models and specifications (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Table Size L×W mm(in.) | Table Height H(Min./Max.) mm(in.) | Overall Size mm(in.) | Foot Pedal to Max. Height
1313701 | FBX15 | 150 (330) | 700×450 (27.6×17.7) | 127/533 (5/21) | 730×450 (28.7×17.7) | 30
1313702 | FBX20 | 200 (440) | 700×500 (27.6×19.7) | 150/711 (6/28) | 730×500 (28.7×19.7) | 40
1313703 | FBX25 | 250 (550) | 830×500 (32.7×19.7) | 150/711 (6/28) | 850×500 (33.5×19.7) | 47
1313704 | FBX30D | 300 (660) | 1010×520 (39.8×20.5) | 240/1375 (9.4/54.1) | 1030×520 (40.6×20.5) | 55
1313705 | FBX50 | 500 (1100) | 1010×520 (39.8×20.5) | 150/800 (6/31.5) | 1030×520 (40.6×20.5) | 70
1313706 | FBX80 | 800 (1760) | 1010×520 (39.8×20.5) | 150/800 (6/31.5) | 1030×520 (40.6×20.5) | 70
1313707 | FBX100 | 1000 (2200) | 1010×520 (39.8×20.5) | 150/800 (6/31.5) | 1030×520 (40.6×20.5) | 80

Technical characteristics / specifications

• Series name: FBX series.
• Design standard: EN1570:1999 (new design to meet this norm).
• Operation: foot pump (foot pedal) with option for hand control release.
• Range of capacities: 150 kg up to 1000 kg (330 lb to 2200 lb) depending on model.
• Table sizes, overall dimensions and table height (min/max) vary by model — see table above.
• Foot pedal travel to maximum height differs by model; verify values in the specifications table for selection.
