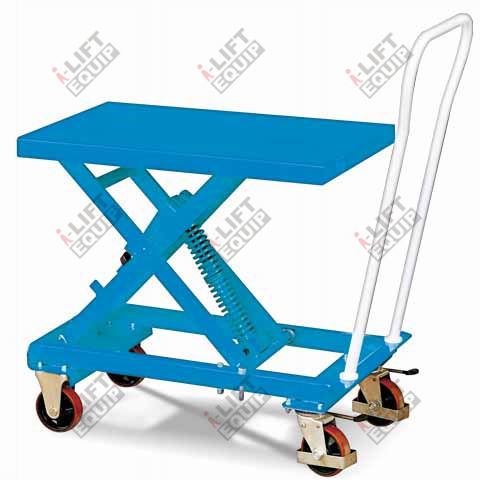

Scissor lift table BC series
mechanicalmobile

Scissor lift table - BC series - i-lift Equipment Ltd. - mechanical / mobile
Scissor lift table - BC series - i-lift Equipment Ltd. - mechanical / mobile
Add to favorites
Compare this product
Go to the i-lift Equipment Ltd. website for more information

Characteristics

Technology
scissor
Operation
mechanical
Type
mobile
Capacity

Min.: 210 kg
(463 lb)

Max.: 400 kg
(881.8 lb)

Lowered height

Min.: 360 mm
(14 in)

Max.: 440 mm
(17 in)

Lifting height

Min.: 360 mm
(14 in)

Max.: 410 mm
(16 in)

Tray length

Min.: 83 cm
(32.68 in)

Max.: 101 cm
(39.76 in)

Tray width

Min.: 50 cm
(19.69 in)

Max.: 52 cm
(20.47 in)

Description

Overview
  • Self‑leveling, fully adjustable, weight‑sensitive lift table designed to maintain an optimal working height for assembly lines and loading/unloading operations.
  • Double‑spring balance system combined with shock absorbers provides controlled vertical movement and reduced bounce.
  • External spring tension adjustment enables fine tuning of the operating range to match load variations.
  • Mechanical operation with ergonomic handle; no electrical power required.


Models and technical table
  • Model BC21 (i‑LIFT No. 1310901): Capacity 210 kg (462 lb); Loading range 80–210 kg (176–462 lb); Table size 830×500 mm (32.7×19.7 in); Table height Min/Max 360/770 mm (14.2/30.3 in); Handle height 1100 mm (43.3 in).
  • Model BC40 (i‑LIFT No. 1310902): Capacity 400 kg (880 lb); Loading range 100–400 kg (220–880 lb); Table size 1010×520 mm (39.8×20.5 in); Table height Min/Max 440/800 mm (17.3/31.5 in); Handle height 1100 mm (43.3 in).


Technical specifications
  • Series / Product name: BC21/40 Spring Lift Table.
  • Operation: mechanical spring lift with self‑leveling mechanism sensitive to load changes.
  • Balancing: double spring system with integrated shock absorbers to minimize rebound and stabilize loads.
  • Adjustment: external spring tension control for setting preload and operating range within each model's limits.
  • Recommended applications: assembly workstations, material handling, loading/unloading, ergonomic positioning tasks.
  • Construction: welded steel frame and platform; corrosion‑protected finish.
  • Maintenance: periodic inspection of springs, shock absorbers and fasteners; replace worn components according to maintenance schedule.
