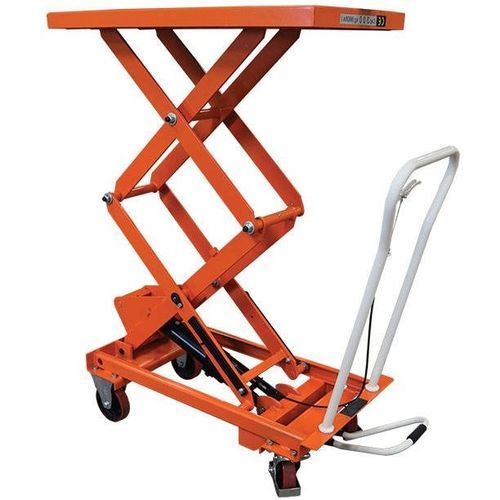

Scissor lift table BS-D series

hydraulicfoot-operatedmobile

Product overview
The BS-D Manual Scissor Lift Table series provides safe, ergonomic lifting and accurate load positioning for industrial material-handling tasks. Available in 300 kg, 500 kg and 800 kg capacities, selected models reach up to 1585 mm lift height. Constructed with an epoxy‑painted steel frame, each unit features a smooth foot-operated hydraulic pump, a top-handle release lever for controlled lowering and 2 fixed + 2 braked swivel casters for easy manoeuvring. Low maintenance and a three-year warranty make the BS-D series suitable for workshops, warehouses and production lines where repetitive lifting reduces operator strain and improves workflow efficiency.

Details

• Manual scissor lift table with capacities of 300, 500 or 800 kg
• Maximum lift height up to 1585 mm (model dependent)
• Foot-operated hydraulic pump with top-handle release lever for smooth lowering
• Epoxy-painted steel construction
• 2 x fixed and 2 x braked swivel casters (Φ150 mm)
• Low maintenance design and three-year warranty
• Typical applications: workshops, warehouses, manufacturing

Models (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Table Size mm(in.) | Table Height (Min./Max.) mm(in.) | Front Load Wheel mm(in.) | Steering Wheel mm(in.)
| BS30D | 300 (660) | LxW: 1010×520 (39.8×20.5) | 435 / 1585 | Φ150 (Φ6) | Φ150 (Φ6)
| BS50D | 500 (1100) | LxW: 1010×520 (39.8×20.5) | 435 / 1585 | Φ150 (Φ6) | Φ150 (Φ6)
| BS80D | 800 (1760) | LxW: 1010×520 (39.8×20.5) | 470 / 1410 | Φ150 (Φ6) | Φ150 (Φ6)

Specifications / Technical details

• Series: BS-D Series
• Available capacities: 300 kg, 500 kg, 800 kg
• Maximum lift height: up to 1585 mm (BS30D/BS50D); BS80D listed with 1410 mm max
• Table size (L×W): 1010 × 520 mm (39.8 × 20.5 in)
• Table height (Min./Max.): BS30D/BS50D 435 / 1585 mm; BS80D 470 / 1410 mm
• Wheels: Front load wheel Φ150 mm; Steering wheel Φ150 mm
• Frame: epoxy-painted steel
• Hydraulics: foot-operated pump with top-handle release lever
• Casters: 2 fixed + 2 braked swivel casters
• Warranty: three-year warranty
