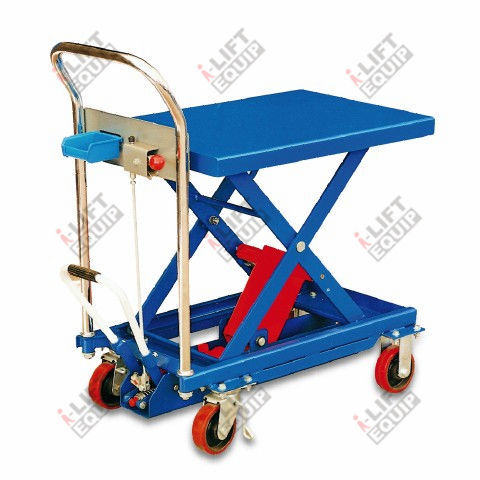

Scissor lift table HEX series

hydraulicmobile

Overview

• Heavy-duty range designed for industrial material handling.
• New design compliant with EN15710:1999.
• Advanced hydraulic system improves safety and protects goods; stepless lowering rate is maintained regardless of load weight.

Models (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Table Size mm(in.) | Table Height (Min./Max.) mm(in.) | Front Load Wheel mm(in.) | Steering Wheel mm(in.)
1314101 | HEX30 | 300 (660) | 755×500 (29.7×19.7) | 280/810 (11/31.9) | φ125 (φ5) | φ125 (φ5)
1314102 | HEX50 | 500 (1100) | 920×615 (36.2×24.2) | 300/940 (11.8/37) | φ125 (φ5) | φ125 (φ5)

Technical specifications

• Series name: HEX SERIES
• Intended product type: Mobile Lift Table
• Compliance: Design meets EN15710:1999
• Hydraulic system: Advanced hydraulic system with controlled stepless lowering independent of load weight
• Model 1314101 (HEX30): Capacity 300 kg (660 lb), Table size 755×500 mm (29.7×19.7 in), Table height min/max 280/810 mm (11/31.9 in), Front load wheel φ125 mm (φ5 in), Steering wheel φ125 mm (φ5 in)
• Model 1314102 (HEX50): Capacity 500 kg (1100 lb), Table size 920×615 mm (36.2×24.2 in), Table height min/max 300/940 mm (11.8/37 in), Front load wheel φ125 mm (φ5 in), Steering wheel φ125 mm (φ5 in)
