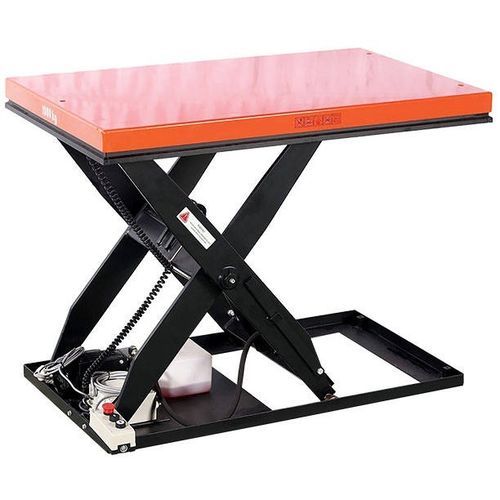

Scissor lift table HWLC series

electricstationary

Product overview
The HWLC electric lift table is a motorized stationary platform for lifting and positioning heavy loads in warehouses, factories and logistics operations. It is driven by an electric motor and operated via a wired hand controller with a 3 m cable, reducing manual handling and improving workflow efficiency and safety.

Details

• Capacity: 1,000 kg or 2,000 kg
• Platform dimensions: 1300 x 800 mm
• Lift height (min/max): 190 / 1010 mm
• Wired hand controller with 3 m cable
• Safety clearance protection to prevent trapping
• Four lifting eye bolts supplied for installation
• Equipped with safety trip bars

Models (table)
i-LIFT NO. | Model No. | Capacity kg(lb.) | Lowered Height mm(in.) | Raised Height mm(in.) | Platform Size mm(in.) | Base Frame Size mm(in.)
- | HWLC1000 | 1000 | 190 | 1010 | 1300×800 |
- | HWLC2000 | 2000 | 190 | 1010 | 1300×800 |

Technical specifications

• Electric motor: 380V / 50Hz AC
• Raising time: 25–40 seconds depending on model
• Control: wired hand controller with 3 m cable
• Safety features: safety clearance protection, safety trip bars
• Installation aids: supplied with four lifting eye bolts
• Intended use: motorized lifting and positioning of heavy loads in industrial and logistics environments
