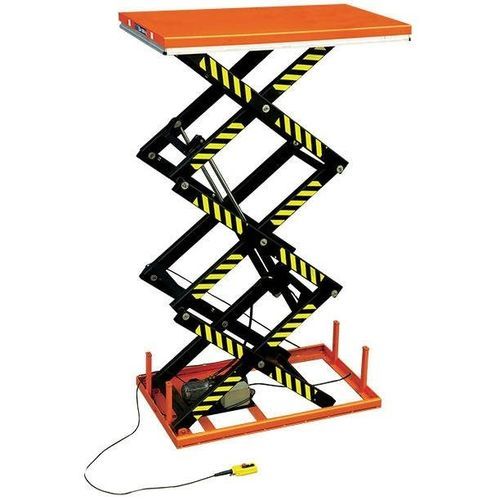

Triple-scissor lift table SHT series

electrichydraulicelectro-hydarulic

Overview
The electric triple scissor lift table is an industrial high-reach lifting solution for safe vertical handling of loads up to 2,000 kg. Offered in SHT1000 and SHT2000 variants, it provides a maximum lift of 2990 mm, a 1700×1000 mm platform and a Bucher hydraulic electro-pump suited to production, assembly and warehouse operations.

Key features

• Electric triple scissors configuration for extra-high vertical reach
• Capacity: 1,000 kg (SHT1000) or 2,000 kg (SHT2000)
• Lift height (min / max): 470 / 2990 mm (SHT1000) or 560 / 2990 mm (SHT2000)
• Platform size: 1700 × 1000 mm
• Bucher hydraulic electro-pump power unit
• Self-lubricated rollers and bushings
• Lowering speed control valve and hose burst valve
• Shear protection and safety clearance to prevent trapping
• Safety trip bars and upper travel limit switch
• Hand controller with 4 m cable; optional 220V single-phase

Models / Technical table

• SHT1000 — Capacity: 1000 kg (2200 lb); Lowered height: 470 mm; Raised height: 2990 mm; Platform: 1700×1000 mm; Base frame: 1600×1000 mm
• SHT2000 — Capacity: 2000 kg (4400 lb); Lowered height: 560 mm; Raised height: 2990 mm; Platform: 1700×1000 mm; Base frame: 1606×1010 mm

Applications

• Industrial lifting tasks requiring extra-high reach
• Warehouse order picking and positioning at elevated heights
• Production and assembly lines needing stable, safe lifting platforms

Specifications

• Series: SHT Series (electric triple scissor lift table)
• Models: SHT1000, SHT2000
• Capacity: SHT1000 = 1000 kg (2200 lb); SHT2000 = 2000 kg (4400 lb)
• Lowered height: SHT1000 = 470 mm; SHT2000 = 560 mm
• Maximum raised height (both models): 2990 mm
• Platform size (both models): 1700 × 1000 mm
• Base frame size: SHT1000 = 1600 × 1000 mm; SHT2000 = 1606 × 1010 mm
• Power unit: Bucher hydraulic electro-pump
• Control: Hand controller with 4 m cable
• Safety features: safety clearance, shear protection, safety trip bars, upper travel limit switch, hose burst valve
• Mechanical features: triple scissors configuration, self-lubricated rollers and bushings, lowering speed control valve
• Optional electrical configuration: 220V single-phase available
