Scissor lift table HE series

electrichydraulicelectro-hydarulic

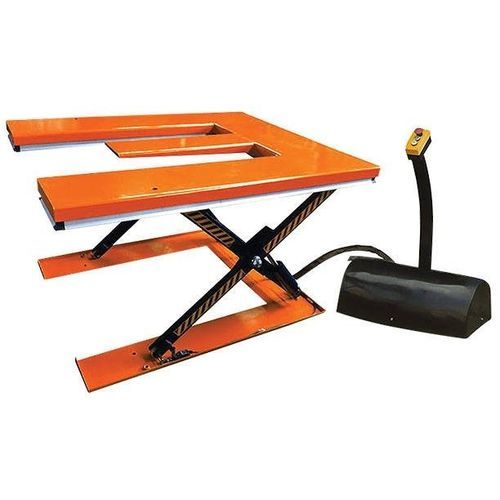

HE--Series E-shaped electric lift table
The E-shaped electric lift table is a low-profile lifting solution for pallet handling and precise load positioning in industrial environments. Available as HE1000 (1,000 kg) or HE2000 (2,000 kg), the E-shaped platform allows pallet access without a pit or ramp so a hand pallet truck can load the table between the scissors. Driven by a Bucher hydraulic electro-pump, the unit provides smooth, controlled lifting with adjustable lift and lowering speed and an ergonomic push-button handle with dead-man switch for safe operation. Typical applications include palletizing, packing stations and load leveling.

Details

• E-shaped electric lift table with 1,000 kg (HE1000) or 2,000 kg (HE2000) capacity
• Platform sizes: 1400 × 1200 mm (HE1000) or 1500 × 1300 mm (HE2000)
• Lowered / raised height: 85 / 885 mm (HE1000) or 100 / 820 mm (HE2000)
• Low folded height (85–100 mm) enables use without pit or ramp
• Bucher hydraulic electro-pump drive
• Pallets can be placed directly with a hand pallet truck running between the scissors
• Ergonomic push-button handle controller with dead-man switch
• Lift and lowering speed control valve for precise positioning
• Designed for palletizing, packing stations and load leveling
• Download the product specifications for further technical information

Options

• Position control system (specify required adjustment range when ordering)

Technical data (table)
Model No. | Capacity kg(lb.) | Lowered Height mm(in.) | Raised Height mm(in.) | Platform Size mm(in.) | Lift Time (sec.)
HE1000 | 1000 (2200) | 85 (3.3) | 885 (33.7) | 1400×1200 (55.1×47.2) | 25–35
HE2000 | 2000 (4400) | 100 (3.9) | 820 (32.3) | 1500×1300 (59.1×51.2) | 30–40

Specifications

• Series: HE--Series (E-shaped low-profile lift table)
• Available models: HE1000, HE2000
• Capacities: HE1000 = 1000 kg; HE2000 = 2000 kg
• Platform dimensions: HE1000 = 1400 × 1200 mm; HE2000 = 1500 × 1300 mm
• Lowered height: HE1000 = 85 mm; HE2000 = 100 mm
• Raised height: HE1000 = 885 mm; HE2000 = 820 mm
• Low folded height allows use without pit or ramp
• Drive: Bucher hydraulic electro-pump
• Controls: Ergonomic push-button handle with dead-man switch; lift and lowering speed control valve
• Typical lift times: HE1000 = 25–35 s; HE2000 = 30–40 s
• Applications: palletizing, packing stations, load leveling
• Option: Position control system (adjustment range to be specified at order)
