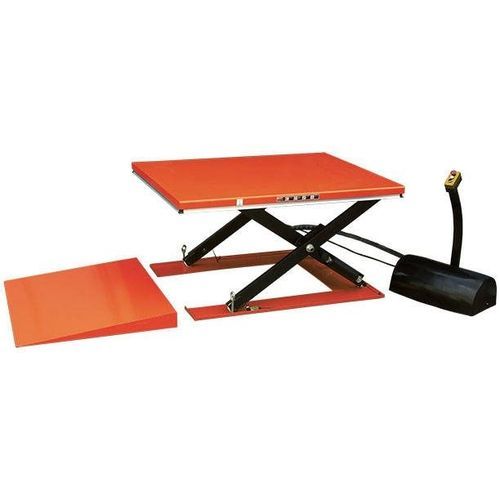

Scissor lift table HY series

electrichydraulicelectro-hydarulic

Overview
The HY-Series low-profile electric lift table is a scissor-type lift designed for efficient pallet handling and ergonomic loading/unloading where pit installation is not feasible. Available in capacities from 1 to 2 metric tons and with a very low closed height (85–105 mm), it combines compact integration, reliable hydraulic drive and compliance with industrial safety standards (EN1570). Built with premium components including a Bucher hydraulic power unit and 24 V controls, the HY-Series supports stable lifting and safe operator interaction.

Details

• Low-profile electric scissor lift table, capacity range 1 to 2 metric tons (1000–2000 kg)
• Ten standard models with different platform sizes and capacities
• Robust scissor mechanism with self-lubricated rollers and bushings
• Equipped with a Bucher hydraulic electro-pump
• Safety features: EN1570 compliance, safety clearance to prevent trapping, hose burst valve, safety trip bars and upper travel limit switch
• Control: 24 V control voltage, push-button handle controller with dead man switch; hand controller with 3 m cable
• Includes upper travel limit switch and accessible maintenance points
• Product demo video available on the manufacturer's YouTube channel

Options

• Position control system (specify adjustment range when ordering)
• 220 V single-phase power supply

Models
HY2002 | 2000 kg (4400 lb) | Lowered 105 mm (4.1 in) | Raised 870 mm (34.3 in) | Platform 1600 x 1000 mm (63 x 40 in) | Lift time 35 s
HY2001 | 2000 kg (4400 lb) | Lowered 105 mm (4.1 in) | Raised 870 mm (34.3 in) | Platform 1600 x 1200 mm (63 x 47.2 in) | Lift time 35 s
HY1503 | 1500 kg (3300 lb) | Lowered 85 mm (3.3 in) | Raised 860 mm (33.9 in) | Platform 1600 x 1200 mm (63 x 47.2 in) | Lift time 30 s
HY1502 | 1500 kg (3300 lb) | Lowered 85 mm (3.3 in) | Raised 860 mm (33.9 in) | Platform 1600 x 1000 mm (63 x 40 in) | Lift time 30 s
HY1501 | 1500 kg (3300 lb) | Lowered 85 mm (3.3 in) | Raised 860 mm (33.9 in) | Platform 1600 x 800 mm (63 x 31.5 in) | Lift time 30 s
HY1005 | 1000 kg (2200 lb) | Lowered 85 mm (3.3 in) | Raised 860 mm (33.9 in) | Platform 1600 x 1000 mm (63 x 40 in) | Lift time 25 s
HY1004 | 1000 kg (2200 lb) | Lowered 85 mm (3.3 in) | Raised 860 mm (33.9 in) | Platform 1600 x 800 mm (63 x 31.5 in) | Lift time 25 s
HY1003 | 1000 kg (2200 lb) | Lowered 85 mm (3.3 in) | Raised 860 mm (33.9 in) | Platform 1450 x 800 mm (57.1 x 31.5 in) | Lift time 25 s
HY1002 | 1000 kg (2200 lb) | Lowered 85 mm (3.3 in) | Raised 860 mm (33.9 in) | Platform 1600 x 1140 mm (63 x 44.9 in) | Lift time 25 s
HY1001 | 1000 kg (2200 lb) | Lowered 85 mm (3.3 in) | Raised 860 mm (33.9 in) | Platform 1450 x 1140 mm (57.1 x 44.9 in) | Lift time 25 s

Technical specifications

• Capacity range: 1000–2000 kg (1–2 metric tons)
• Closed (lowered) height: 85–105 mm depending on model
• Raised height: typically 860–870 mm depending on model
• Platform sizes: from 1450 x 800 mm up to 1600 x 1200 mm (inch equivalents shown)
• Lift time: 25–35 seconds depending on model
• Hydraulic power unit: Bucher hydraulic electro-pump
• Control system: 24 V control voltage, push-button handle controller with dead man switch; hand controller with 3 m cable
• Safety: EN1570 compliance, hose burst valve, safety trip bars, upper travel limit switch, safety clearance
• Mechanicals: self-lubricated rollers and bushings
• Number of standard models: 10
• Options: 220 V single-phase supply and position control system
