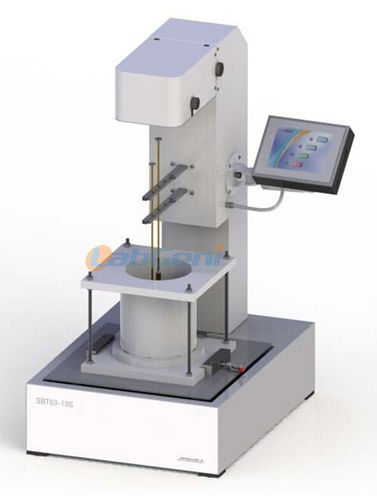

Vibrating table with timer SBT03-10S

Product description
Vibration table SBT03-10S designed for testing and conditioning concentrates and similar bulk materials. Accepts particles up to 25 mm and is intended for evaluating flow and moisture behavior under controlled vibration and temperature conditions.

Applications and compliance

• Suitable for concentrates and similar substances; maximum particle size: 25 mm
• Designed to meet the IMSBC Code appendix requirements for vibration tables

Technical specifications

• Model: SBT03-10S
• Vibration frequency: 60 Hz
• Acceleration: adjustable (rms)
• Particle size acceptance: up to 25 mm
• Temperature range: ambient to 200 °C
• Temperature accuracy: ±1 °C
• Temperature resolution: 0.1 °C
• Timing range: 0 to 24 hours

Included accessories

• Large circular cylinder
• Small circular cylinder
• Inserting rod
• Bracket
• Scale
• Main vibration table unit

Installation and operation notes

• Install on a stable, level surface and follow relevant safety and IMSBC installation requirements
• Controls enable adjustment of frequency, acceleration, temperature and timing
• Refer to the manufacturer's manual for detailed setup and maintenance procedures
