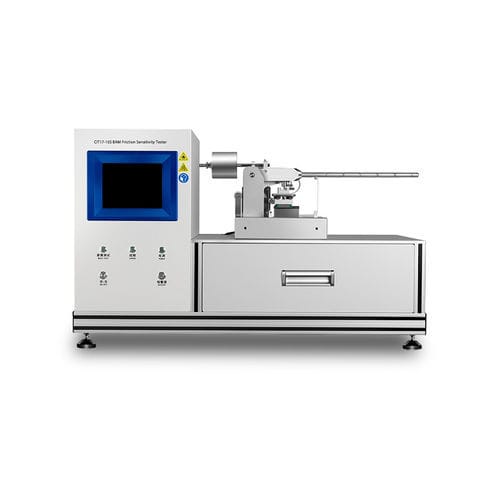

Friction tester CIT17-10Slaboratorybenchtopwith touchscreen
Add to favorites
Compare this product
Characteristics
- Test type
- friction
- Applications
- laboratory
- Configuration
- benchtop
- Other characteristics
- automatic, with LCD screen, with touchscreen, with memory, computer-controlled, with data acquisition system
Description
Product overview
The CIT17-10S BAM friction sensitivity tester measures friction sensitivity of candidate materials to assess transport hazards according to UN Recommendations on the Transport of Dangerous Goods, Tests and Criteria Manual, section 13.5.1 Test 3b(a) (BAM friction instrument). The instrument evaluates whether a sample reacts by explosion, shows no response, or decomposes under controlled friction stimulus.
Operation
The tester uses a weighted load arm and a magnet-mounted specimen to drive a porcelain piece in reciprocating motion. Observation of the specimen reaction yields the test result: explosion, no response, or decomposition. The system supports full automation with parameter configuration, data storage and report viewing to reduce manual intervention.
Product features
Product specifications
Operating environment: 5 °C to 30 °C, relative humidity <85%
Load range: 0 N to 360 N
Load accuracy by range: 1 N ±0.038 N; 2 N ±0.048 N; 5 N ±0.08 N; 10 N ±0.21 N; 20 N ±0.45 N; 40 N ±0.49 N; 60 N ±0.22 N; 80 N ±0.27 N; 120 N ±0.32 N; 160 N ±0.37 N; 240 N ±0.43 N; 360 N ±0.48 N
Industrial porcelain surface roughness: 9 to 32 μm
Porcelain movement stroke: 10 mm
Porcelain size (L × W × H): 25 × 25 × 5 mm
Ceramic rod size (Φ × L): 10 × 15 mm
Technical characteristics
The CIT17-10S BAM friction sensitivity tester measures friction sensitivity of candidate materials to assess transport hazards according to UN Recommendations on the Transport of Dangerous Goods, Tests and Criteria Manual, section 13.5.1 Test 3b(a) (BAM friction instrument). The instrument evaluates whether a sample reacts by explosion, shows no response, or decomposes under controlled friction stimulus.
Operation
The tester uses a weighted load arm and a magnet-mounted specimen to drive a porcelain piece in reciprocating motion. Observation of the specimen reaction yields the test result: explosion, no response, or decomposition. The system supports full automation with parameter configuration, data storage and report viewing to reduce manual intervention.
Product features
- Embedded processor running Windows CE for device control
- 8-inch LCD touchscreen displaying real-time test status for intuitive operation
- High-precision motion control unit for accurate porcelain positioning, speed control and repeatable movement
- Adjustable porcelain movement speed to match test requirements
- Corrosion-resistant friction and load components designed for laboratory durability
- Fully automated test workflow with parameter setting, data logging and report generation
Product specifications
Operating environment: 5 °C to 30 °C, relative humidity <85%
Load range: 0 N to 360 N
Load accuracy by range: 1 N ±0.038 N; 2 N ±0.048 N; 5 N ±0.08 N; 10 N ±0.21 N; 20 N ±0.45 N; 40 N ±0.49 N; 60 N ±0.22 N; 80 N ±0.27 N; 120 N ±0.32 N; 160 N ±0.37 N; 240 N ±0.43 N; 360 N ±0.48 N
Industrial porcelain surface roughness: 9 to 32 μm
Porcelain movement stroke: 10 mm
Porcelain size (L × W × H): 25 × 25 × 5 mm
Ceramic rod size (Φ × L): 10 × 15 mm
Technical characteristics
- Model: CIT17-10S
- Standard compliance: UN Tests and Criteria Manual 13.5.1 Test 3b(a) (BAM friction instrument)
- Operating conditions: 5 °C to 30 °C, RH <85%
- Load range: 0–360 N with specified accuracies by increment
- Porcelain stroke: 10 mm; speed adjustable
- Porcelain dimensions: 25 × 25 × 5 mm; ceramic rod Φ10 × 15 mm
- Control and UI: embedded processor, Windows CE, 8-inch touchscreen
- Motion control: precision unit for positioning and speed control
- Design: corrosion-resistant materials; automated testing with parameter setting, data storage and reporting
